HARP Functionality Overview

HARP is a new approach to High Availability for BDR clusters. It leverages consensus-driven Quorum to determine the correct connection end-point in a semi-exclusive manner to prevent unintended multi-node writes from an application.

The Importance of Quorum

The central purpose of HARP is to enforce full Quorum on any Postgres cluster it manages. Quorum is merely a term generally applied to a voting body that mandates a certain minimum of attendees are available to make a decision. Or perhaps even more simply: Majority Rules.

In order for any vote to end in a result other than a tie, an odd number of nodes must constitute the full cluster membership. Quorum however does not strictly demand this restriction; a simple majority will suffice. This means that in a cluster of N nodes, Quorum requires a minimum of N/2+1 nodes to hold a meaningful vote.

All of this ensures the cluster is always in agreement regarding which node should be “in charge”. For a BDR cluster consisting of multiple nodes, this determines which node is the primary write target. HARP designates this node as the Lead Master.

Reducing Write Targets

The consequence of ignoring the concept of Quorum, or applying it insufficiently, may lead to a Split Brain scenario where the “correct” write target is ambiguous or unknowable. In a standard Postgres cluster, it is important that only a single node is ever writable and sending replication traffic to the remaining nodes.

Even in Multi-Master capable approaches such as BDR, it can be beneficial to reduce the amount of necessary conflict management to derive identical data across the cluster. In clusters that consist of multiple BDR nodes per physical location or region, this usually means a single BDR node acts as a “Leader” and remaining nodes are “Shadows”. These Shadow nodes are still writable, but doing so is discouraged unless absolutely necessary.

By leveraging Quorum, it’s possible for all nodes to agree exactly which Postgres node should represent the entire cluster, or a local BDR region. Any nodes that lose contact with the remainder of the Quorum, or are overruled by it, by definition cannot become the cluster Leader.

This prevents Split Brain situations where writes unintentionally reach two Postgres nodes. Unlike technologies such as VPNs, Proxies, load balancers, or DNS, a Quorum-derived consensus cannot be circumvented by mis-configuration or network partitions. So long as it’s possible to contact the Consensus layer to determine the state of the Quorum maintained by HARP, only one target is ever valid.

Basic Architecture

The design of HARP comes in essentially two parts consisting of a Manager and a Proxy. The following diagram describes how these interact with a single Postgres instance:

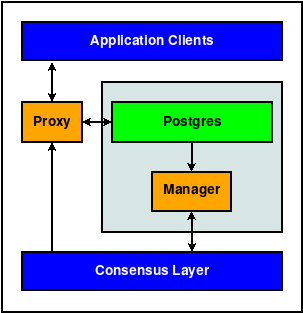

HARP Unit

HARP Unit

The Consensus Layer is an external entity where Harp Manager maintains information it learns about its assigned Postgres node, and HARP Proxy translates this information to a valid Postgres node target. Because Proxy obtains the node target from the Consensus Layer, several such instances may exist independently.

While using BDR itself as the Consensus Layer, each server node resembles this variant instead.

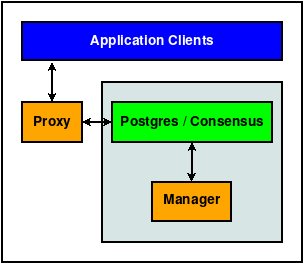

HARP Unit w/BDR Consensus

HARP Unit w/BDR Consensus

In either case, each unit consists of the following elements:

  • A Postgres or EDB instance

  • A Consensus Layer resource, meant to track various attributes of the Postgres instance

  • A HARP Manager process to convey the state of the Postgres node to the Consensus Layer

  • A HARP Proxy service that directs traffic to the proper Lead Master node, as derived from the Consensus Layer

Not every application stack has access to additional node resources specifically for the Proxy component, so it can be combined with the application server to simplify the stack itself.

This is a typical design using two BDR nodes in a single Data Center organized in a Lead Master / Shadow Master configuration:

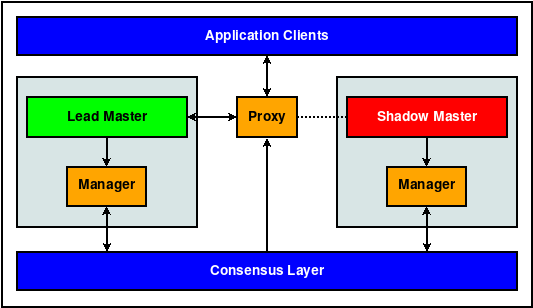

HARP Cluster

HARP Cluster

Note that when using BDR itself as the HARP Consensus Layer, at least three fully qualified BDR nodes must be present to ensure a quorum majority.

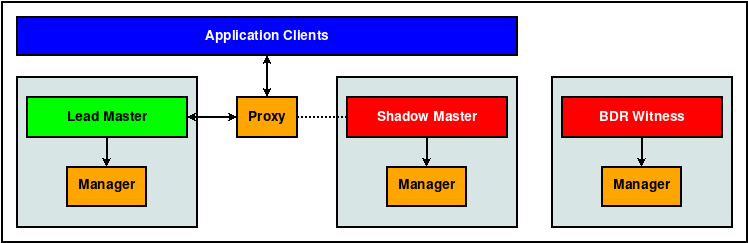

HARP Cluster w/BDR Consensus

HARP Cluster w/BDR Consensus

(Not shown in the above diagram are connections between BDR nodes.)

How it Works

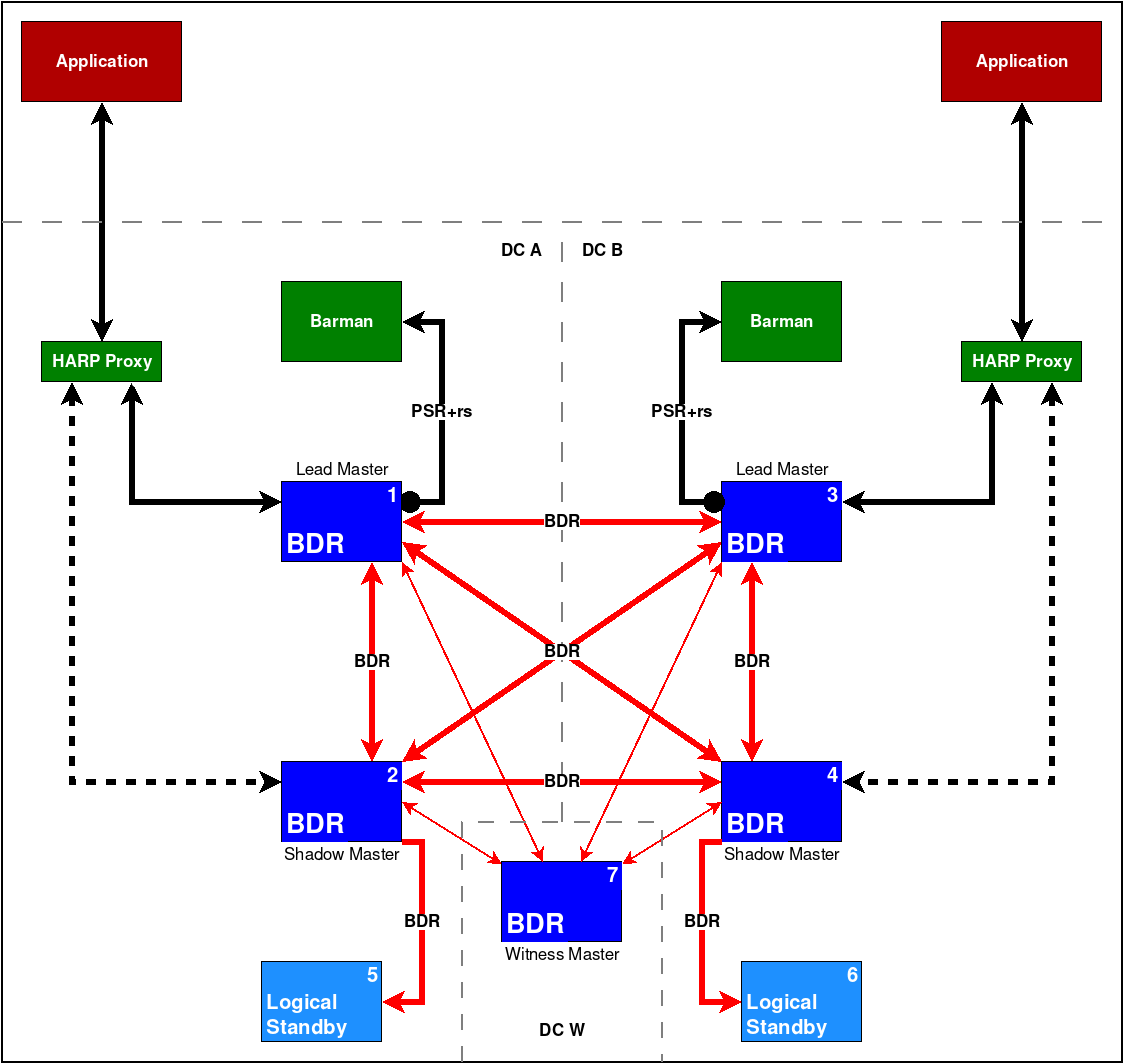

When managing a BDR cluster, HARP maintains at most one “Leader” node per defined Location. Canonically this is referred to as the Lead Master. Other BDR nodes which are eligible to take this position are Shadow Master state until such a time they take the Leader role.

Applications may contact the current Leader only through the Proxy service. Since the Consensus Layer requires Quorum agreement before conveying Leader state, any and all Proxy services will direct traffic to that node.

At a high level, this is ultimately what prevents application interaction with multiple nodes simultaneously.

Determining a Leader

As an example, consider the role of Lead Master within a locally subdivided BDR Always-On group as may exist within a single data center. When any Postgres or Manager resource is started, and after a configurable refresh interval, the following must occur:

  1. The Manager checks the status of its assigned Postgres resource. - If Postgres is not running, try again after configurable timeout. - If Postgres is running, continue. 2. The Manager checks the status of the Leader lease in the Consensus Layer. - If the lease is unclaimed, acquire it and assign the identity of the Postgres instance assigned to this Manager. This lease duration is configurable, but setting it too low may result in unexpected leadership transitions. - If the lease is already claimed by us, renew the lease TTL. - Otherwise do nothing.

Obviously a lot more happens here, but this simplified version should explain what’s happening. The Leader lease can only be held by one node, and if it’s held elsewhere, HARP Manager gives up and tries again later.

Note

Depending on the chosen Consensus Layer, rather than repeatedly looping to check the status of the Leader lease, HARP will subscribe to notifications instead. In this case, it can respond immediately any time the state of the lease changes, rather than polling. Currently this functionality is restricted to the etcd Consensus Layer.

This means HARP itself does not hold elections or manage Quorum; this is delegated to the Consensus Layer. The act of obtaining the lease must be acknowledged by a Quorum of the Consensus Layer, so if the request succeeds, that node leads the cluster in that Location.

Connection Routing

Once the role of the Lead Master is established, connections are handled with a similar deterministic result as reflected by HARP Proxy. Consider a case where HARP Proxy needs to determine the connection target for a particular backend resource:

  1. HARP Proxy interrogates the Consensus layer for the current Lead Master in its configured location. 2. If this is unset or in transition; - New client connections to Postgres are barred, but clients will accumulate and be in a paused state until a Lead Master appears. - Existing client connections are allowed to complete current transaction, and are then reverted to a similar pending state as new connections. 3. Client connections are forwarded to the Lead Master.

Note that the interplay demonstrated in this case does not require any interaction with either HARP Manager or Postgres. The Consensus Layer itself is the source of all truth from the Proxy’s perspective.

Colocation

The arrangement of the work units is such that their organization is required to follow these principles:

  1. The Manager and Postgres units must exist concomitantly within the same node. 2. The contents of the Consensus Layer dictate the prescriptive role of all operational work units.

This delegates cluster Quorum responsibilities to the Consensus Layer itself, while HARP leverages it for critical role assignments and key/value storage. Neither storage or retrieval will succeed if the Consensus Layer is inoperable or unreachable, thus preventing rogue Postgres nodes from accepting connections.

As a result, the Consensus Layer should generally exist outside of HARP or HARP managed nodes for maximum safety. Our reference diagrams reflect this in order to encourage such separation, though it is not required.

Note

In order to operate and manage cluster state, BDR contains its own implementation of the Raft Consensus model. HARP may be configured to leverage this same layer to reduce reliance on external dependencies and to preserve server resources. However, there are certain drawbacks to this approach that are discussed in further depth in the section on the Consensus layer .
