Quickstart¶

This section describes how to test a PostgreSQL cluster on your laptop/computer using CloudNativePG on a local Kubernetes cluster in

Kind or Testing on Minikube .

Warning

The instructions contained in this section are for demonstration, testing, and practice purposes only and must not be used in production.

Like any other Kubernetes application, CloudNativePG is deployed using regular manifests written in YAML.

By following the instructions on this page you should be able to start a PostgreSQL cluster on your local Kubernetes installation and experiment with it.

Important

Make sure that you have kubectl installed on your machine in order to connect to the Kubernetes cluster. Please follow the Kubernetes documentation on how to install `kubectl <https://kubernetes.io/docs/tasks/tools/install-kubectl/>`__ .

Part 1: Setup the local Kubernetes playground¶

The first part is about installing Minikube or Kind. Please spend some time reading about the systems and decide which one to proceed with. After setting up one of them, please proceed with part 2.

We also provide instructions for setting up monitoring with Prometheus and Grafana for local testing/evaluation, in Part 4: Monitor clusters with Prometheus and Grafana

Minikube¶

Minikube is a tool that makes it easy to run Kubernetes locally. Minikube runs a single-node Kubernetes cluster inside a Virtual Machine (VM) on your laptop for users looking to try out Kubernetes or develop with it day-to-day. Normally, it is used in conjunction with VirtualBox.

You can find more information in the official Kubernetes documentation on how to install Minikube in your local personal environment. When you installed it, run the following command to create a minikube cluster:

minikube start

This will create the Kubernetes cluster, and you will be ready to use it. Verify that it works with the following command:

kubectl get nodes

You will see one node called minikube .

Kind¶

If you do not want to use a virtual machine hypervisor, then Kind is a tool for running local Kubernetes clusters using Docker container “nodes” (Kind stands for “Kubernetes IN Docker” indeed).

Install kind on your environment following the instructions in the: Quickstart , then create a Kubernetes cluster with:

kind create cluster --name pg

Part 2: Install CloudNativePG¶

Now that you have a Kubernetes installation up and running on your laptop, you can proceed with CloudNativePG installation.

Please refer to the Installation and upgrades section and then proceed with the deployment of a PostgreSQL cluster.

Part 3: Deploy a PostgreSQL cluster¶

As with any other deployment in Kubernetes, to deploy a PostgreSQL cluster you need to apply a configuration file that defines your desired Cluster .

The

apiVersion: postgresql.cnpg.io/v1
kind: Cluster
metadata:
  name: cluster-example
spec:
  instances: 3

  storage:
    size: 1Gi

sample file defines a simple Cluster using the default storage class to allocate disk space:

#  Example of PostgreSQL cluster

apiVersion: postgresql.cnpg.io/v1
kind: Cluster
metadata:
  name: cluster-example
spec:
  instances: 3

  # Example of rolling update strategy:
  # - unsupervised: automated update of the primary once all
  #                 replicas have been upgraded (default)
  # - supervised: requires manual supervision to perform
  #               the switchover of the primary
  primaryUpdateStrategy: unsupervised

  # Require 1Gi of space
  storage:
    size: 1Gi

In order to create the 3-node PostgreSQL cluster, you need to run the following command:

kubectl apply -f cluster-example.yaml

You can check that the pods are being created with the get pods command:

kubectl get pods

That will look for pods in the default namespace. To separate your cluster from other workloads on your Kubernetes installation, you could always create a new namespace to deploy clusters on. Alternatively, you can use labels. The operator will apply the cnpg.io/cluster label on all objects relevant to a particular cluster. For example:

kubectl get pods -l cnpg.io/cluster=<CLUSTER>

Important

Note that we are using cnpg.io/cluster as the label. In the past you may have seen or used postgresql . This label is being deprecated, and will be dropped in the future. Please use cngp.io/cluster .

By default, the operator will install the latest available minor version of the latest major version of PostgreSQL when the operator was released. You can override this by setting the imageName key in the spec section of the Cluster definition. For example, to install PostgreSQL 13.6:

apiVersion: postgresql.cnpg.io/v1
kind: Cluster
metadata:
   # [...]
spec:
   # [...]
   imageName: ghcr.io/cloudnative-pg/postgresql:13.6
   #[...]

Important

The immutable infrastructure paradigm requires that you always point to a specific version of the container image. Never use tags like latest or 13 in a production environment as it might lead to unpredictable scenarios in terms of update policies and version consistency in the cluster. For strict deterministic and repeatable deployments, you can add the digests to the image name, through the <image>:<tag>@sha256:<digestValue> format.

Part 4: Monitor clusters with Prometheus and Grafana¶

Important

Installing Prometheus and Grafana is beyond the scope of this project. The instructions in this section are provided for experimentation and illustration only.

In this section we show how to deploy Prometheus and Grafana for observability, and how to create a Grafana Dashboard to monitor CloudNativePG clusters, and a set of Prometheus Rules defining alert conditions.

We leverage the Kube-Prometheus stack , Helm chart, which is maintained by the: Prometheus Community . Please refer to the project website for additional

documentation and background.

The Kube-Prometheus-stack Helm chart installs the Prometheus Operator example , including the Alert Manager , and a Part 4: Monitor clusters with Prometheus and Grafana deployment.

We include a configuration file for the deployment of this Helm chart that will provide useful initial settings for observability of CloudNativePG clusters.

Installation¶

If you don’t have Using the Helm Chart installed yet, please follow the: instructions to install it in your system.

We need to add the prometheus-community helm chart repository, and then install the KubePrometheusstack using the sample configuration we provide:

We can accomplish this with the following commands:

helm repo add prometheus-community \
  https://prometheus-community.github.io/helm-charts

helm upgrade --install \
  -f https://raw.githubusercontent.com/cloudnative-pg/cloudnative-pg/main/docs/src/samples/monitoring/kube-stack-config.yaml \
  prometheus-community \
  prometheus-community/kube-prometheus-stack

After completion, you will have Prometheus, Grafana and Alert Manager installed with values from the kube-stack-config.yaml file:

From the Prometheus installation, you will have the Prometheus Operator watching for any PodMonitor (see *monitoring* ).
The Grafana installation will be watching for a Grafana dashboard ConfigMap .

Viewing with Prometheus¶

At this point, a CloudNativePG cluster deployed with Monitoring activated would be observable via Prometheus.

For example, you could deploy a simple cluster with PodMonitor enabled:

kubectl apply -f - <<EOF
- --
apiVersion: postgresql.cnpg.io/v1
kind: Cluster
metadata:
  name: cluster-with-metrics
spec:
  instances: 3

  storage:
    size: 1Gi

  monitoring:
    enablePodMonitor: true
EOF

To access Prometheus, port-forward the Prometheus service:

kubectl port-forward svc/prometheus-community-kube-prometheus 9090

Then access the Prometheus console locally at: http://localhost:9090/

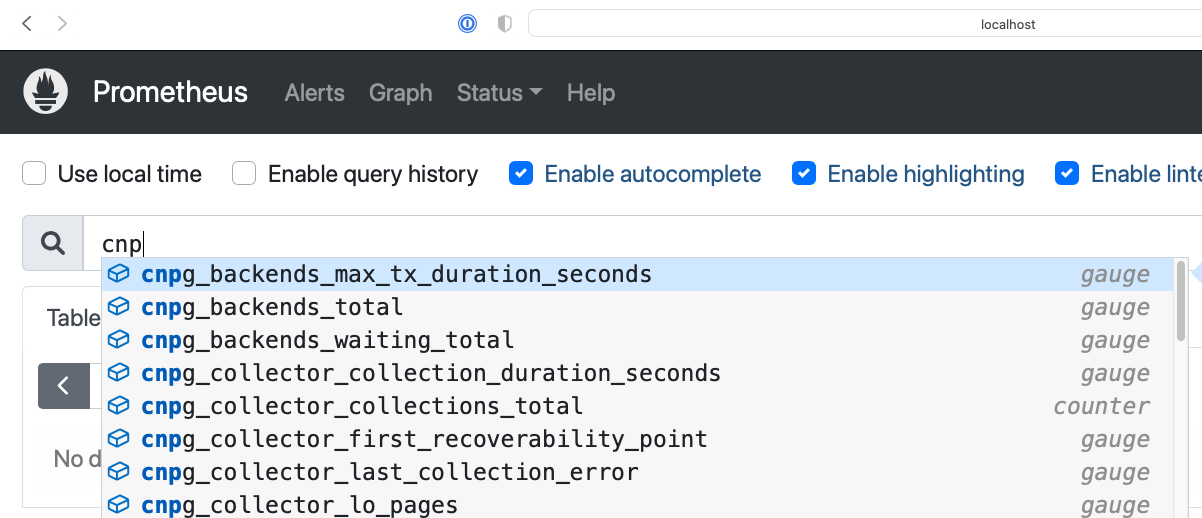

Assuming that the monitoring stack was successfully deployed, and you have a Cluster with enablePodMonitor: true you should find a series of metrics relating to CloudNativePG clusters. Again, please refer to the *monitoring section* for more information.

You can now define some alerts by creating a prometheusRule :

kubectl apply -f \
  https://raw.githubusercontent.com/cloudnative-pg/cloudnative-pg/main/docs/src/samples/monitoring/cnpg-prometheusrule.yaml

You should see the default alerts now:

% kubectl get prometheusrules
NAME                                                       AGE
cnpg-default-alerts                                        3m27s

In the Prometheus console, you can click on the Alerts menu to see the alerts we just installed.

Grafana Dashboard¶

In our “plain” installation, Grafana is deployed with no predefined dashboards.

You can port-forward:

kubectl port-forward svc/prometheus-community-grafana 3000:80

And access Grafana locally at http://localhost:3000/

providing the credentials admin as username, prom-operator as password (defined in kube-stack-config.yaml ).

We can now install our sample Grafana dashboard:

kubectl apply -f \
  https://raw.githubusercontent.com/cloudnative-pg/cloudnative-pg/main/docs/src/samples/monitoring/grafana-configmap.yaml

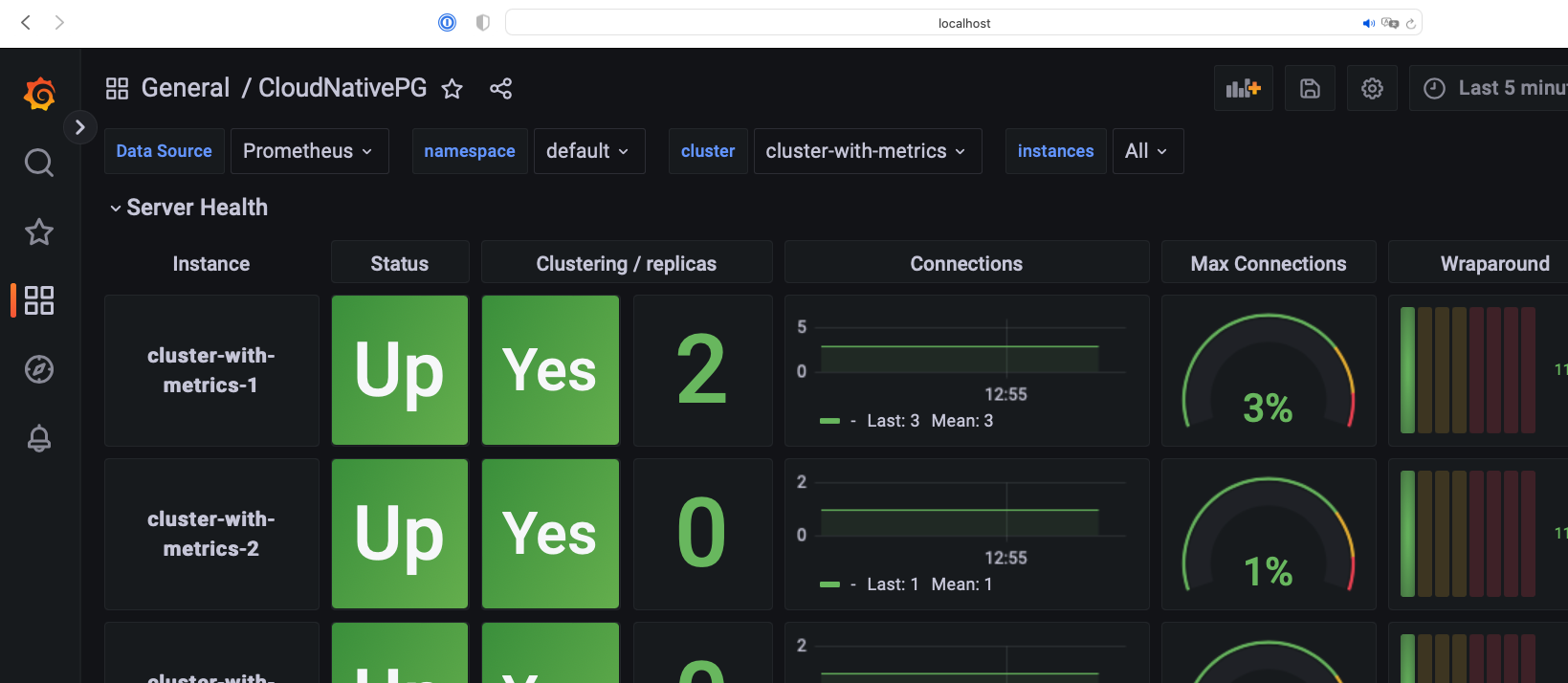

Which will be picked up by the Grafana page in a few seconds. You should now see the CloudNativePG dashboard.

Warning

Some graphs in the previous dashboard make use of metrics that are in alpha stage by the time this was created, like kubelet_volume_stats_available_bytes and kubelet_volume_stats_capacity_bytes producing some graphs to show No data .

Note that in our example setup, both Prometheus and Grafana will pick up any other CloudNativePG clusters deployed with Monitoring activated.
