Operator Capability Levels¶
This section provides a summary of the capabilities implemented by CloudNativePG, classified using the Operator SDK definition of Capability Levels framework.
Operator Capability Levels¶
Important

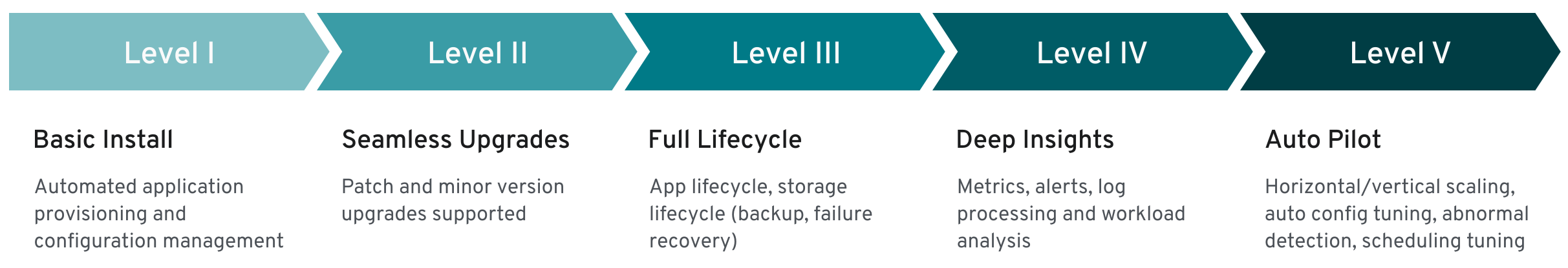

Based on the Operator Capability Levels model , You can expect a “Level V - Auto Pilot” set of capabilities from the CloudNativePG Operator.
Each capability level is associated with a certain set of management features the operator offers:
Basic Install
Seamless Upgrades
Full Lifecycle
Deep Insights
Auto Pilot
Note
We consider this framework as a guide for future work and implementations in the operator.
Level 1 - Basic Install¶
Capability level 1 involves installation and configuration of the operator. This category includes usability and user experience enhancements, such as improvements in how you interact with the operator and a PostgreSQL cluster configuration.
Important
We consider Information Security part of this level.
Operator deployment via declarative configuration¶
The operator is installed in a declarative way using a Kubernetes
manifest which defines 4 major CustomResourceDefinition objects:
Cluster , Pooler , Backup , and ScheduledBackup .
PostgreSQL cluster deployment via declarative configuration¶
A PostgreSQL cluster (operand) is defined using the Cluster custom
resource in a fully declarative way. The PostgreSQL version is
determined by the operand container image defined in the CR, which is
automatically fetched from the requested registry. When deploying an
operand, the operator also automatically creates the following
resources: Pod , Service , Secret , ConfigMap
,PersistentVolumeClaim , PodDisruptionBudget ,
ServiceAccount , RoleBinding , Role .
Override of operand images through the CRD¶
The operator is designed to support any operand container image with
PostgreSQL inside. By default, the operator uses the latest available
minor version of the latest stable major version supported by the
PostgreSQL Community and published on ghcr.io. You can use any
compatible image of PostgreSQL supporting the primary/standby
architecture directly by setting the imageName attribute in the CR.
The operator also supports imagePullSecrets to access private
container registries, as well as digests in addition to tags for finer
control of container image immutability.
Labels and annotations¶
The operator can be configured to support inheritance of labels and annotations that are defined in a cluster’s metadata, with the goal to improve organizations of CloudNativePG deployment in your Kubernetes infrastructure.
Self-contained instance manager¶
Instead of relying on an external tool such as Patroni or Stolon to
coordinate PostgreSQL instances in the Kubernetes cluster pods, the
operator injects the operator executable inside each pod, in a file
named /controller/manager . The application is used to control the
underlying PostgreSQL instance and to reconcile the pod status with the
instance itself based on the PostgreSQL cluster topology. The instance
manager also starts a web server that is invoked by the kubelet for
probes. Unix signals invoked by the kubelet are filtered by the
instance manager and, where appropriate, forwarded to the postgres
process for fast and controlled reactions to external events. The
instance manager is written in Go and has no external dependencies.
Storage configuration¶
Storage is a critical component in a database workload. Taking advantage
of Kubernetes native capabilities and resources in terms of storage, the
operator gives you enough flexibility to choose the right storage for
your workload requirements, based on what the underlying Kubernetes
environment can offer. This implies choosing a particular storage class
in a public cloud environment or fine-tuning the generated PVC through a
PVC template in the CR’s storage parameter. The cnp-bench open
source project can be used to benchmark both the storage and the
database prior to production.
Replica configuration¶
The operator automatically detects replicas in a cluster through a
single parameter called instances . If set to 1 , the cluster
comprises a single primary PostgreSQL instance with no replica. If
higher than 1 , the operator manages instances -1 replicas,
including high availability through automated failover and rolling
updates through switchover operations.
Database configuration¶
The operator is designed to manage a PostgreSQL cluster with a single
database. The operator transparently manages access to the database
through three Kubernetes services automatically provisioned and managed
for read-write, read, and read-only workloads. Using the convention over
configuration approach, the operator creates a database called app ,
by default owned by a regular Postgres user with the same name. Both the
database name and the user name can be specified if required. Although
no configuration is required to run the cluster, you can customize both
PostgreSQL run-time configuration and PostgreSQL Host-Based
Authentication rules in the postgresql section of the CR.
Pod Security Policies¶
For InfoSec requirements, the operator does not require privileged mode for any container and enforces read only root filesystem to guarantee containers immutability for both the operator and the operand pods. It also explicitly sets the required security contexts.
Affinity¶
The cluster’s affinity section enables fine-tuning of how pods and
related resources such as persistent volumes are scheduled across the
nodes of a Kubernetes cluster. In particular, the operator supports:
pod affinity and anti-affinity
node selector
taints and tolerations
Command line interface¶
CloudNativePG does not have its own command line interface. It simply
relies on the best command line interface for Kubernetes, kubectl ,
by providing a plugin called cnpg to enhance and simplify your
PostgreSQL cluster management experience.
Current status of the cluster¶
The operator continuously updates the status section of the CR with the
observed status of the cluster. The entire PostgreSQL cluster status is
continuously monitored by the instance manager running in each pod: the
instance manager is responsible for applying the required changes to the
controlled PostgreSQL instance to converge to the required status of the
cluster (for example: if the cluster status reports that pod -1 is
the primary, pod -1 needs to promote itself while the other pods
need to follow pod -1 ). The same status is used by the cnpg
plugin for kubectl to provide details.
TLS connections¶
The operator transparently and natively supports TLS/SSL connections to encrypt client/server communications for increased security using the cluster’s certification authority. Support for custom server certificates is available through secrets: this also includes integration with cert-manager.
Certificate authentication for streaming replication¶
The operator relies on TLS client certificate authentication to authorize streaming replication connections from the standby servers, instead of relying on a password (and therefore a secret).
Continuous configuration management¶
The operator enables you to apply changes to the Cluster resource
YAML section of the PostgreSQL configuration and makes sure that all
instances are properly reloaded or restarted, depending on the
configuration option. Current limitation: changes with
ALTER SYSTEM are not detected, meaning that the cluster state is not
enforced.
Import of existing PostgreSQL databases¶
Since version 1.16, the operator provides a declarative way to import
existing Postgres databases in a new CloudNativePG Cluster in
Kubernetes, using offline migrations. The same feature covers also
offline major upgrades of PostgreSQL databases. Offline means that
applications must stop their write operations at the source until the
database is imported. The feature extends the initdb bootstrap
method to create a new PostgreSQL cluster using a logical snapshot of
the data available in another PostgreSQL database - which can be
accessed via the network through a superuser connection. Import is from
any supported version of Postgres and relies on pg_dump and
pg_restore to be executed from the new cluster primary for all
databases part of the operation and, if requested, for roles.
PostGIS clusters¶
- CloudNativePG supports the installation of clusters with the
PostGIS clusters open source extension for geographical databases, one of
the most popular extensions for PostgreSQL.
Basic LDAP authentication for PostgreSQL¶
The operator allows you to configure LDAP authentication for your PostgreSQL clients, using either the simple bind or search+bind mode, as described in the PostgreSQL documentation: LDAP authentication .
Multiple installation methods¶
The operator can be installed through a Kubernetes manifest via
kubectl apply , to be used in a traditional Kubernetes installation
in public and private cloud environments. Additionally, a Helm Chart for
the operator is also available.
Convention over configuration¶
The operator supports the convention over configuration paradigm,
deciding standard default values while allowing you to override them and
customize them. You can specify a deployment of a PostgreSQL cluster
using the Cluster CRD in a couple of YAML code lines.
Level 2 - Seamless Upgrades¶
Capability level 2 is about enabling updatesoftheoperatorandtheactualworkload , in our case PostgreSQL servers. This includes PostgreSQLminorreleaseupdates (security and bug fixes normally) as well as majoronlineupgrades .
Upgrade of the operator¶
You can upgrade the operator seamlessly as a new deployment. A change in the operator does not require a change in the operand - thanks to the instance manager’s injection. The operator can manage older versions of the operand.
CloudNativePG also supports In-place updates of the instance manager following an upgrade of the operator: in-place updates do not require a rolling update - and subsequent switchover - of the cluster.
Upgrade of the managed workload¶
The operand can be upgraded using a declarative configuration approach
as part of changing the CR and, in particular, the imageName
parameter. The operator prevents major upgrades of PostgreSQL while
making it possible to go in both directions in terms of minor PostgreSQL
releases within a major version (enabling updates and rollbacks).
In the presence of standby servers, the operator performs rolling
updates starting from the replicas by dropping the existing pod and
creating a new one with the new requested operand image that reuses the
underlying storage. Depending on the value of the
primaryUpdateStrategy , the operator proceeds with a switchover
before updating the former primary (unsupervised ) or waits for the
user to manually issue the switchover procedure (supervised ) via
the cnpg plugin for kubectl . Which setting to use depends on
the business requirements as the operation might generate some downtime
for the applications, from a few seconds to minutes based on the actual
database workload.
Display cluster availability status during upgrade¶
At any time, convey the cluster’s high availability status, for example,
Setting up primary , Creating a new replica ,
Cluster in healthy state , Switchover in progress ,
Failing over , Upgrading cluster , etc.
Level 3 - Full Lifecycle¶
Capability level 3 requires the operator to manage aspects of businesscontinuity and scalability . Disasterrecovery is a business continuity component that requires that both backup and recovery of a database work correctly. While as a starting point, the goal is to achieve RPO < 5 minutes, the long term goal is to implement RPO=0 backup solutions. HighAvailability is the other important component of business continuity that, through PostgreSQL native physical replication and hot standby replicas, allows the operator to perform failover and switchover operations. This area includes enhancements in:
control of PostgreSQL physical replication, such as synchronous replication, (cascading) replication clusters, and so on;
connection pooling, to improve performance and control through a connection pooling layer with pgBouncer.
PostgreSQL Backups¶
The operator has been designed to provide application-level backups using PostgreSQL’s native continuous backup technology based on physical base backups and continuous WAL archiving. Specifically, the operator currently supports only backups on object stores (AWS S3 and S3-compatible, Azure Blob Storage, Google Cloud Storage, and gateways like MinIO).
WAL archiving and base backups are defined at the cluster level,
declaratively, through the backup parameter in the cluster
definition, by specifying an S3 protocol destination URL (for example,
to point to a specific folder in an AWS S3 bucket) and, optionally, a
generic endpoint URL. WAL archiving, a prerequisite for continuous
backup, does not require any further action from the user: the operator
will automatically and transparently set the archive_command to rely
on barman-cloud-wal-archive to ship WAL files to the defined
endpoint. Users can decide the compression algorithm, as well as the
number of parallel jobs to concurrently upload WAL files in the archive.
In addition to that Instance Manager automatically checks the
correctness of the archive destination, by performing
barman-cloud-check-wal-archive command before beginning to ship the
very first set of WAL files.
You can define base backups in two ways: on-demand (through the
Backup custom resource definition) or scheduled (through the
ScheduledBackup customer resource definition, using a cron-like
syntax). They both rely on barman-cloud-backup for the job
(distributed as part of the application container image) to relay
backups in the same endpoint, alongside WAL files.
Both barman-cloud-wal-restore and barman-cloud-backup are
distributed in the application container image under GNU GPL 3 terms.
Full restore from a backup¶
The operator enables you to bootstrap a new cluster (with its settings)
starting from an existing and accessible backup taken using
barman-cloud-backup . Once the bootstrap process is completed, the
operator initiates the instance in recovery mode and replays all
available WAL files from the specified archive, exiting recovery and
starting as a primary. Subsequently, the operator will clone the
requested number of standby instances from the primary. CloudNativePG
supports parallel WAL fetching from the archive.
Point-In-Time Recovery (PITR) from a backup¶
The operator enables you to create a new PostgreSQL cluster by recovering an existing backup to a specific point-in-time, defined with a timestamp, a label or a transaction ID. This capability is built on top of the full restore one and supports all the options available in
Zero Data Loss clusters through synchronous replication¶
Achieve Zero Data Loss (RPO=0) in your local High Availability
CloudNativePG cluster through quorum based synchronous replication
support. The operator provides two configuration options that control
the minimum and maximum number of expected synchronous standby replicas
available at any time. The operator will react accordingly, based on the
number of available and ready PostgreSQL instances in the cluster,
through the following formula for the quorum (q ):
1 <= minSyncReplicas <= q <= maxSyncReplicas <= readyReplicas
Replica clusters¶
Define a cross Kubernetes cluster topology of PostgreSQL clusters, by
taking advantage of PostgreSQL native streaming and cascading
replication. Through the replica option, you can setup an
independent cluster to be continuously replicating data from another
PostgreSQL source of the same major version: such a source can be
anywhere, as long as a direct streaming connection via TLS is allowed
from the two endpoints. Moreover, the source can be even outside
Kubernetes, running in a physical or virtual environment. Replica
clusters can be created from a recovery object store (backup in Barman
Cloud format) or via streaming through pg_basebackup . Both WAL file
shipping and WAL streaming are allowed. Replica clusters dramatically
improve the business continuity posture of your PostgreSQL databases in
Kubernetes, spanning over multiple datacenters and opening up for hybrid
and multi-cloud setups (currently, manual switchover across data centers
is required, while waiting for Kubernetes federation native
capabilities).
Liveness and readiness probes¶
The operator defines liveness and readiness probes for the Postgres
Containers that are then invoked by the kubelet. They are mapped
respectively to the /healthz and /readyz endpoints of the web
server managed directly by the instance manager. The liveness probe is
based on the pg_isready executable, and the pod is considered
healthy with exit codes 0 (server accepting connections normally) and 1
(server is rejecting connections, for example during startup). The
readiness probe issues a simple query (; ) to verify that the server
is ready to accept connections.
Rolling deployments¶
The operator supports rolling deployments to minimize the downtime and, if a PostgreSQL cluster is exposed publicly, the Service will load-balance the read-only traffic only to available pods during the initialization or the update.
Scale up and down of replicas¶
The operator allows you to scale up and down the number of instances in
a PostgreSQL cluster. New replicas are automatically started up from the
primary server and will participate in the cluster’s HA infrastructure.
The CRD declares a “scale” subresource that allows the user to use the
kubectl scale command.
Maintenance window and PodDisruptionBudget for Kubernetes nodes¶
The operator creates a PodDisruptionBudget resource to limit the
number of concurrent disruptions to one primary instance. This
configuration prevents the maintenance operation from deleting all the
pods in a cluster, allowing the specified number of instances to be
created. The PodDisruptionBudget will be applied during the node
draining operation, preventing any disruption of the cluster service.
While this strategy is correct for Kubernetes Clusters where storage is
shared among all the worker nodes, it may not be the best solution for
clusters using Local Storage or for clusters installed in a private
cloud. The operator allows you to specify a Maintenance Window and
configure the reaction to any underlying node eviction. The ReusePVC
option in the maintenance window section enables to specify the strategy
to be used: allocate new storage in a different PVC for the evicted
instance or wait for the underlying node to be available again.
Fencing¶
Fencing is the process of protecting the data in one, more, or even all instances of a PostgreSQL cluster when they appear to be malfunctioning. When an instance is fenced, the PostgreSQL server process is guaranteed to be shut down, while the pod is kept running. This makes sure that, until the fence is lifted, data on the pod is not modified by PostgreSQL and that the file system can be investigated for debugging and troubleshooting purposes.
Reuse of Persistent Volumes storage in Pods¶
When the operator needs to create a pod that has been deleted by the
user or has been evicted by a Kubernetes maintenance operation, it
reuses the PersistentVolumeClaim if available, avoiding the need to
re-clone the data from the primary.
CPU and memory requests and limits¶
The operator allows administrators to control and manage resource usage
by the cluster’s pods, through the resources section of the
manifest. In particular requests and limits values can be set
for both CPU and RAM.
Connection pooling with PgBouncer¶
- CloudNativePG provides native support for connection pooling with
PgBouncerIntegrationStatus , one of the most popular open source connection poolers
for PostgreSQL. From an architectural point of view, the native implementation of a PgBouncer connection pooler introduces a new layer to access the database which optimizes the query flow towards the instances and makes the usage of the underlying PostgreSQL resources more efficient. Instead of connecting directly to a PostgreSQL service, applications can now connect to the PgBouncer service and start reusing any existing connection.
Level 4 - Deep Insights¶
Capability level 4 is about observability : in particular, monitoring, alerting, trending, log processing. This might involve the use of external tools such as Prometheus, Grafana, Fluent Bit, as well as extensions in the PostgreSQL engine for the output of error logs directly in JSON format.
CloudNativePG has been designed to provide everything that is needed to easily integrate with industry-standard and community accepted tools for flexible monitoring and logging.
Prometheus exporter with configurable queries¶
The instance manager provides a pluggable framework and, via its own web
server listening on the metrics port (9187), exposes an endpoint to
export metrics for the Prometheus Operator example monitoring and alerting tool. The
operator supports custom monitoring queries defined as ConfigMap
and/or Secret objects using a syntax that is compatible with the
postgres_exporter . CloudNativePG provides a set of basic monitoring
queries for PostgreSQL that can be integrated and adapted to your context. The [cnp-sandbox project] is an open source Helm chart that demonstrates how to integrate CloudNativePG with Prometheus and Grafana, by providing some basic metrics and an example of dashboard.
Standard output logging of PostgreSQL error messages in JSON format¶
Every log message is delivered to standard output in JSON format, with
the first level definition of the timestamp, the log level and the type
of log entry, such as postgres for the canonical PostgreSQL error
message channel. As a result, every Pod managed by CloudNativePG can be
easily and directly integrated with any downstream log processing stack
that supports JSON as source data type.
Real-time query monitoring¶
CloudNativePG transparently and natively supports:
the essential Enabling `pg_stat_statements`<Enabling `pg_stat_statements>` , which enables tracking of planning and execution statistics of all SQL statements executed by a PostgreSQL server.
the Enabling `auto_explain`<Enabling `auto_explain>` , which provides a means for logging execution plans of slow statements automatically, without having to manually run
EXPLAIN(helpful for tracking down un-optimized queries).
Audit¶
CloudNativePG allows database and security administrators, auditors, and operators to track and analyze database activities using PGAudit (for PostgreSQL). Such activities flow directly in the JSON log and can be properly routed to the correct downstream target using common log brokers like Fluentd.
Kubernetes events¶
Record major events as expected by the Kubernetes API, such as creating
resources, removing nodes, upgrading, and so on. Events can be displayed
through the kubectl describe and kubectl get events command.
Level 5 - Auto Pilot¶
Capability level 5 is focused on automatedscaling , healing and tuning - through the discovery of anomalies and insights that emerged from the observability layer.
Automated Failover for self-healing¶
In case of detected failure on the primary, the operator will change the
status of the cluster by setting the most aligned replica as the new
target primary. As a consequence, the instance manager in each alive pod
will initiate the required procedures to align itself with the requested
status of the cluster, by either becoming the new primary or by
following it. In case the former primary comes back up, the same
mechanism will avoid a split-brain by preventing applications from
reaching it, running pg_rewind on the server and restarting it as a
standby.
Automated recreation of a standby¶
In case the pod hosting a standby has been removed, the operator initiates the procedure to recreate a standby server.
