Installing Migration Toolkit

You can use an RPM package or Stack Builder to install Migration Toolkit. Stack Builder is distributed with both Advanced Server and the PostgreSQL one-click installer, available from EnterpriseDB.

Before installing Migration Toolkit, you must first install Java (version 1.7.0 or later). Free downloads of Java installers and installation instructions are available at:

http://www.java.com/en/download/index.jsp

Using an RPM Package to Install Migration Toolkit

You can use an RPM package to install Migration Toolkit on a 64-bit Linux host. Before installing Migration Toolkit, you must:

• Install a Java environment (version 1.7.0 or later) on your Migration Toolkit host.

• You must also have credentials that allow access to the EnterpriseDB repository. For information about requesting credentials, visit:

https://info.enterprisedb.com/rs/069-ALB-339/images/Repository%20Access%2004-09-2019.pdf

After receiving your repository credentials you can:

1. Create the repository configuration file.

2. Modify the file, providing your user name and password.

3. Install Migration Toolkit.

Creating a Repository Configuration File

To create the repository configuration file, assume superuser privileges and invoke the following command:

yum -y install https://yum.enterprisedb.com/edb-repo-rpms/edb-repo-latest.noarch.rpm

The repository configuration file is named edb.repo. The file resides in /etc/yum.repos.d.

After creating the edb.repo file, use your choice of editor to ensure that the value of the enabled parameter is 1, and replace the username and password placeholders in the baseurl specification with the name and password of a registered EnterpriseDB user.

[edb]
name=EnterpriseDB RPMs $releasever - $basearch
baseurl=https://<username>:<password>@yum.enterprisedb.com/edb/redhat/rhel-$releasever-$basearch
enabled=1
gpgcheck=1
gpgkey=file:///etc/pki/rpm-gpg/ENTERPRISEDB-GPG-KEY

After saving your changes to the configuration file, you can use the yum install command to install Migration Toolkit:

yum install edb-migrationtoolkit

When you install an RPM package that is signed by a source that is not recognized by your system, yum may ask for your permission to import the key to your local server. If prompted, and you are satisfied that the packages come from a trustworthy source, enter a y, and press Return to continue.

During the installation, yum may encounter a dependency that it cannot resolve. If it does, it will provide a list of the required dependencies that you must manually resolve.

After installing Migration Toolkit, you must configure the installation. Perform the following steps before invoking Migration Toolkit.

Using Migration Toolkit with IDENT Authentication

By default, the pg_hba.conf file for the RPM installer enforces IDENT authentication for remote clients. Before invoking Migration Toolkit, you must either modify the pg_hba.conf file, changing the authentication method to a form other than IDENT (and restarting the server), or perform the following steps to ensure that an IDENT server is accessible:

1. Confirm that an identd server is installed and running. You can use the yum package manager to install an identd server by invoking the command:

   yum install xinetd authd

   The command should create a file named /etc/xinetd.d/auth that contains:

service auth
{
disable = yes
socket_type = stream
wait = no
user = ident
cps = 4096 10
instances = UNLIMITED
server = /usr/sbin/in.authd
server_args = -t60 --xerror --os
}

Note: if the file includes a -E argument at the end of server_args, please erase the -E.

Then, to start the identd server, invoke the commands:

systemctl enable xinetd
systemctl start xinetd

2. Open the pg_ident.conf file and create a user mapping:

# map_name system_username postgres_username
edbas enterprisedb enterprisedb

Where:

The name specified in the map_name column is a user-defined name that will identify the mapping in the pg_hba.conf file.

The name specified in the system_username column is enterprisedb.

The name specified in the postgres_username column is enterprisedb.

3. Open the pg_hba.conf file and modify the IDENT entries.

   On an IPv4 host:

   host all all 127.0.0.0/0 ident map=edbas

   On an IPv6 host:

   host all all ::1/128 ident map=edbas

4. Restart the Advanced Server service before invoking Migration Toolkit.

Using Stack Builder to Install Migration Toolkit

Please Note: This guide uses the term Stack Builder to refer to either StackBuilder Plus (distributed with Advanced Server) or Stack Builder (distributed with the PostgreSQL one-click installer from EnterpriseDB).

Please note that you must have a Java JVM (version 1.7.0 or later) in place before Stack Builder can perform a Migration Toolkit installation. Free downloads of Java installers and installation instructions are available at:

http://www.java.com/en/download/index.jsp

The Java executable must be in your search path (%PATH% on Windows, $PATH on Linux/Unix). Use the following commands to set the search path (substituting the name of the directory that holds the Java executable for javadir):

On Windows, use the command:

SET PATH=\ *javadir*;%PATH%

On Linux, use the command:

PATH=\ *javadir*:$PATH

After setting the search path, you can use the Stack Builder installation wizard to install Migration Toolkit into either Advanced Server or PostgreSQL.

Launching StackBuilder Plus from Advanced Server

To launch StackBuilder Plus from an existing Advanced Server installation, navigate through the Start (or Applications) menu to the EDB Postgres menu; open the EDB Add-ons menu, and select the StackBuilder Plus menu option.

Launching Stack Builder from PostgreSQL

To launch Stack Builder from a PostgreSQL installation, navigate through the Start (or Applications) menu to the PostgreSQL menu, and select the Application StackBuilder Plus menu option.

Stack Builder opens as shown below.

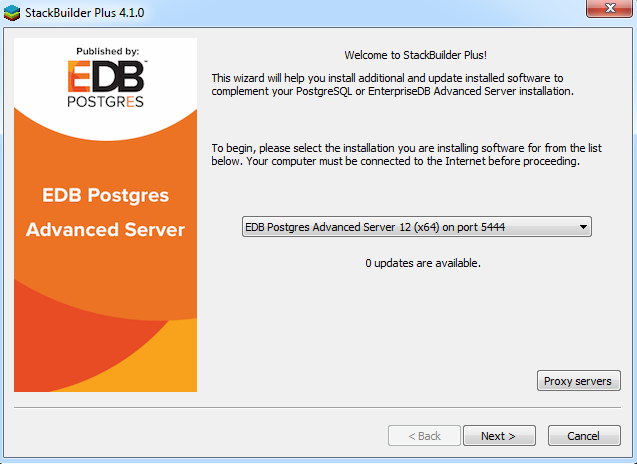

The Stack Builder welcome window.

Use the drop-down listbox to select the target server installation from the list of available servers. If your network requires you to use a proxy server to access the Internet, use the Proxy servers button to open the Proxy servers dialog and specify a server; if you do not need to use a proxy server, click Next to open the application selection window.

The Stack Builder application selection window.

If you are using StackBuilder Plus to add Migration Toolkit to your Advanced Server installation, expand the Add-ons, tools and utilities node of the tree control, and check the box next to EnterpriseDB Migration Toolkit. Click Next to continue.

If you are using Stack Builder to add Migration Toolkit to your PostgreSQL installation, expand the EnterpriseDB Tools node of the tree control (located under the Registration-required and trial products node), and check the box next to Migration Toolkit. Click Next to continue.

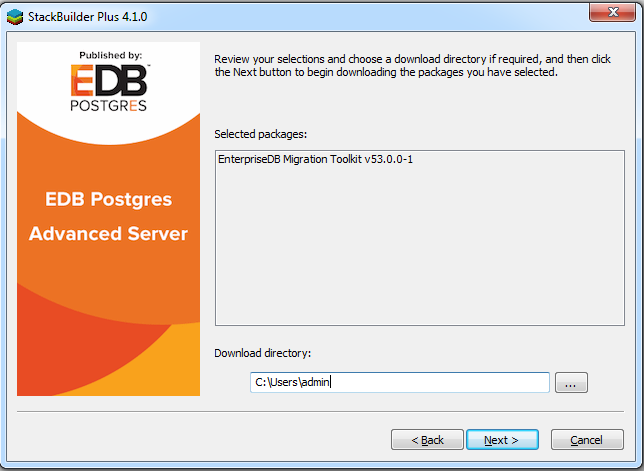

The Stack Builder selection confirmation window.

Confirm that Migration Toolkit is included in the Selected Packages list and that the Download directory field contains an acceptable download location.

Downloading the Migration Toolkit installer.

Click Next to start the Migration Toolkit download.

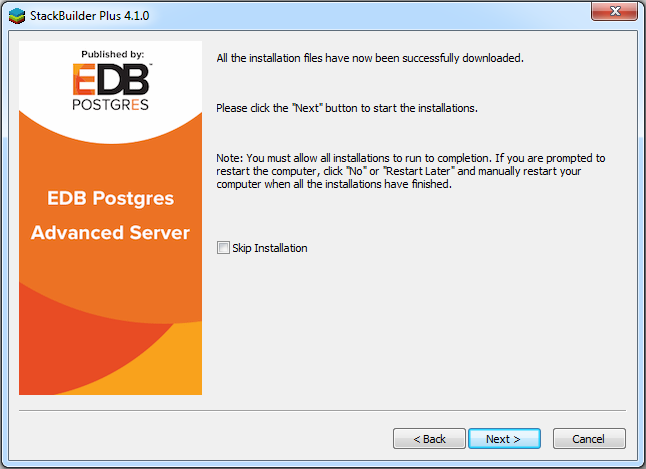

Stack Builder confirms the file download.

When the download completes, Stack Builder confirms that the installation files have been successfully downloaded. Choose Next to open the Migration Toolkit installation wizard.

When prompted by the Migration Toolkit installation wizard, specify a language for the installation and click OK to continue.

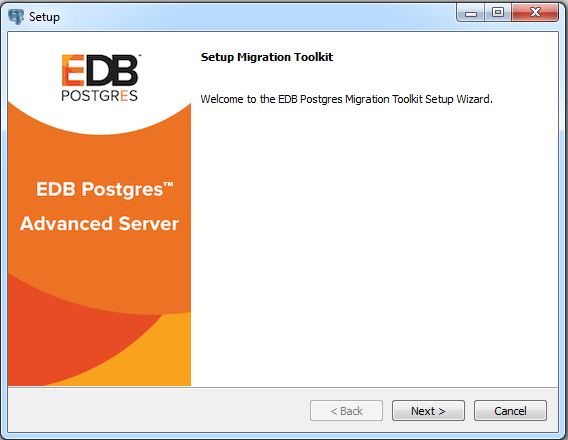

The Migration Toolkit installation wizard.

The Migration Toolkit installation wizard opens. Click Next to continue.

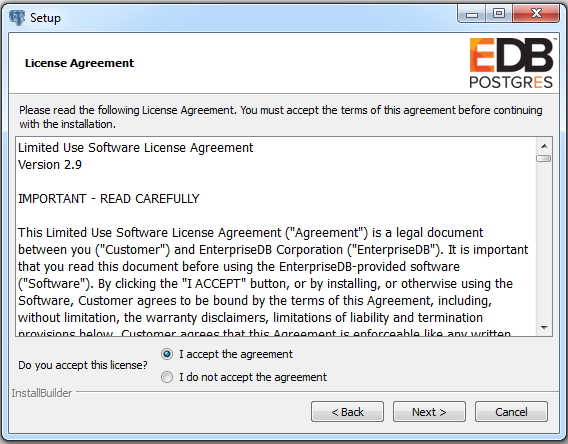

The EnterpriseDB license agreement.

Carefully review the license agreement before highlighting the appropriate radio button; click Next to continue.

Specify a Migration Toolkit installation directory.

By default, Migration Toolkit will be installed in the mtk directory; accept the default installation directory as displayed, or modify the directory, and click Next to continue.

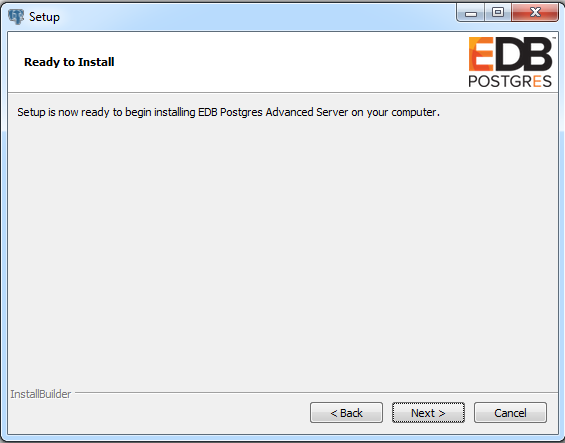

Setup is ready to start the Migration Toolkit installation.

The installation wizard confirms that the Setup program is ready to install Migration Toolkit; click Next to start the installation.

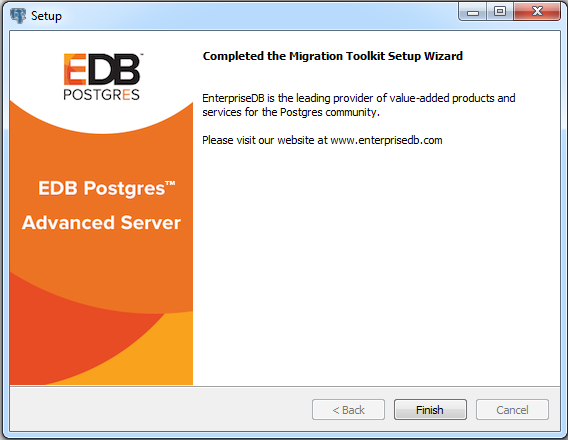

The Migration Toolkit wizard has finished.

A dialog confirms that the Migration Toolkit installation is complete; click Finish to exit the Migration Toolkit installer.

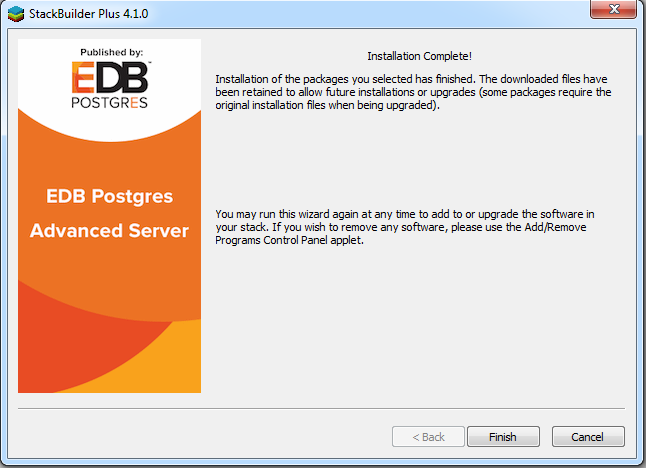

Stack Builder confirms the installation is complete.

When Stack Builder finalizes installation of the last selected component, it displays the Installation Completed window. Click Finish to close Stack Builder.

After installing Migration Toolkit with Stack Builder, you must install the appropriate source-specific drivers before performing a migration; please see Installing Source-Specific Drivers for more information.

Installing Source-Specific Drivers

Before invoking Migration Toolkit, you must download and install a freely available source-specific driver. To download a driver, or for a link to a vendor download site, visit the Third Party JDBC Drivers section of the Advanced Downloads page at the EnterpriseDB website:

https://www.enterprisedb.com/advanced-downloads

After downloading the source-specific driver, move the driver file into the JAVA_HOME/jre/lib/ext directory.
