Installing Migration Toolkit

Before installing Migration Toolkit, you must install Java (version 1.7.0 or later).

To install Migration Toolkit, you must have credentials that allow access to the EnterpriseDB repository. To request credentials for the repository, visit the EnterpriseDB website at:

https://www.enterprisedb.com/repository-access-request

Linux

Windows

Mac OS X

CentOS/RHEL

CentOS/RHEL 7 ppc64le

Debian/Ubuntu

SLES

You can use an RPM package to install Migration Toolkit on a CentOS or RHEL host. The following steps provide detailed information about accessing the EnterpriseDB repository and installing Migration Toolkit.

Creating a Repository Configuration File

1. To create the repository configuration file, assume superuser privileges and invoke the following command:

• On RHEL or CentOs 7:

  yum -y install https://yum.enterprisedb.com/edb-repo-rpms/
  edb-repo-latest.noarch.rpm


• On RHEL or CentOs 8:

  dnf -y install https://yum.enterprisedb.com/edb-repo-rpms/
  edb-repo-latest.noarch.rpm


  The repository configuration file is named edb.repo. The file resides in /etc/yum.repos.d.

2. After creating the edb.repo file, use your choice of editor to ensure that the value of the enabled parameter is 1, and replace the username and password placeholders in the baseurl specification with the name and password of a registered EnterpriseDB user.

[edb]
name=EnterpriseDB RPMs $releasever - $basearch
baseurl=https://<username>:<password>@yum.enterprisedb.com/
edb/
redhat/rhel-$releasever-$basearch
enabled=1
gpgcheck=1
gpgkey=file:///etc/pki/rpm-gpg/ENTERPRISEDB-GPG-KEY

3. After saving your changes to the configuration file, install the EPEL repository:

• On RHEL or CentOS 7:

  yum -y install https://dl.fedoraproject.org/pub/epel/
  epel-release-latest-7.noarch.rpm


• On RHEL or Centos 8:

  dnf -y install https://dl.fedoraproject.org/pub/epel/
  epel-release-latest-8.noarch.rpm


4. If you are using RHEL or CentOS 8.x, you must enable an additional repository to resolve dependencies:

• On CentOS 8 (Powertools repo):

  dnf config-manager --set-enabled PowerTools


• On RHEL 8 (codeready-builder-for-rhel-8- * -rpms repo):

ARCH=$( /bin/arch )
subscription-manager repos --enable "codeready-builder-for
-rhel-8-${ARCH}-rpms"

Installing Migration Toolkit

• On RHEL or CentOs 7:

  yum -y install edb-migrationtoolkit


• On RHEL or CentOs 8:

  dnf -y install edb-migrationtoolkit


When you install an RPM package that is signed by a source that is not recognized by your system, yum may ask for your permission to import the key to your local server. If prompted, and you are satisfied that the packages come from a trustworthy source, enter a y, and press Return to continue.

During the installation, yum may encounter a dependency that it cannot resolve. If it does, it will provide a list of the required dependencies that you must manually resolve.

After installing Migration Toolkit, you must configure the installation. Perform the following steps before invoking Migration Toolkit.

Using Migration Toolkit with IDENT Authentication

By default, the pg_hba.conf file for the RPM installer enforces IDENT authentication for remote clients. Before invoking Migration Toolkit, you must either modify the pg_hba.conf file, changing the authentication method to a form other than IDENT (and restarting the server), or perform the following steps to ensure that an IDENT server is accessible:

1. Confirm that an identd server is installed and running. You can use the yum package manager to install an identd server by invoking the command:

   yum install xinetd authd

   The command should create a file named /etc/xinetd.d/auth that contains:

service auth
{
   disable       = yes
   socket_type   = stream
   wait          = no
   user          = ident
   cps           = 4096 10
   instances     = UNLIMITED
   server        = /usr/sbin/in.authd
   server_args   = -t60 --xerror --os
}

Note

if the file includes a -E argument at the end of server_args, please erase the -E.

Then, to start the identd server, invoke the commands:

systemctl enable xinetd
systemctl start xinetd

2. Open the pg_ident.conf file and create a user mapping:

# map_name system_username postgres_username
edbas enterprisedb enterprisedb

Where:

• The name specified in the map_name column is a user-defined name that will identify the mapping in the pg_hba.conf file.

• The name specified in the system_username column is enterprisedb.

• The name specified in the postgres_username column is enterprisedb.

3. Open the pg_hba.conf file and modify the IDENT entries.

   On an IPv4 host:

   host all all 127.0.0.0/0 ident map=edbas

   On an IPv6 host:

   host all all ::1/128 ident map=edbas

4. Restart the EDB Postgres Advanced Server service before invoking Migration Toolkit.

If you have an existing RPM installation, you can use yum to upgrade your repository configuration file and update to a more recent product version. To update the edb.repo file, assume superuser privileges and enter:

yum upgrade edb-repo

yum will update the edb.repo file to enable access to the current EnterpriseDB repository, configured to connect with the credentials specified in your edb.repo file. Then, you can use yum to upgrade Migration toolkit:

yum upgrade edb-migrationtoolkit

You can use an RPM package to install Migration Toolkit on a CentOS or RHEL ppc64le host.

Before installing Migration toolkit , you must:

1. Create the Advance Toolchain repository configuration file; assume superuser privileges and invoke the following command:

rpm --import https://public.dhe.ibm.com/software/server/POWER/
Linux/toolchain/at/redhat/RHEL7/gpg-pubkey-6976a827-5164221b

2. After creating the advance-toolchain.repo file, use your choice of editor to ensure that the value of the enabled parameter is 1, and replace the username and password placeholders in the baseurl specification with the name and password of a registered EnterpriseDB user.

[advance-toolchain]
name=Advance Toolchain IBM FTP
baseurl=https://public.dhe.ibm.com/software/server/POWER/
Linux/toolchain/at/redhat/RHEL7
failovermethod=priority
enabled=1
gpgcheck=1
gpgkey=ftp://public.dhe.ibm.com/software/server/POWER/Linux/
toolchain/at/redhat/RHELX/gpg-pubkey-6976a827-5164221b

The following steps provide detailed information about accessing the EnterpriseDB repository and installing Migration Toolkit.

Creating a Repository Configuration File

1. To create the EDB repository configuration file, assume superuser privileges and invoke the following command:

yum -y install https://yum.enterprisedb.com/edb-repo-rpms/
edb-repo-latest.noarch.rpm

The repository configuration file is named edb.repo. The file resides in /etc/yum.repos.d.

2. After creating the edb.repo file, use your choice of editor to ensure that the value of the enabled parameter is 1, and replace the username and password placeholders in the baseurl specification with the name and password of a registered EnterpriseDB user.

   [edb]
   name=EnterpriseDB RPMs $releasever - $basearch
   baseurl=https://<username>:<password>@yum.enterprisedb.com/edb/
   redhat/rhel-$releasever-$basearch
   enabled=1
   gpgcheck=1
   gpgkey=file:///etc/pki/rpm-gpg/ENTERPRISEDB-GPG-KEY


3. After saving your changes to the configuration file, install the EPEL package:

yum -y install https://dl.fedoraproject.org/pub/epel/
epel-release-latest-7.noarch.rpm

4. If you are using RHEL 7 ppc64le, you must enable an additional repository to resolve dependencies:

subscription-manager repos --enable "rhel-*-optional-rpms"
--enable "rhel-*-extras-rpms"  --enable "rhel-ha-for-rhel-*
-server-rpms"

5. To install Migration Toolkit, run the following command.

yum -y install edb-migrationtoolkit

To install a package with apt, complete the following steps. When invoking the commands, replace the username and password with the user credentials provided by EnterpriseDB.

1. Assume superuser privileges:

sudo su –

2. Configure the EnterpriseDB repository:

• On Debian 9, perform the following step to configure the EnterpriseDB repository:

  sh -c 'echo "deb https://username:password@apt.
  enterprisedb.com/$(lsb_release -cs)-edb/ $(lsb_release
  -cs) main" > /etc/apt/sources.list.d/edb-$(lsb_release
  -cs).list'


• On Debian 10, perform the following steps to configure the EnterpriseDB repository:

  1. Set up the EnterpriseDB repository:

  sh -c 'echo "deb [arch=amd64] https://
  apt.enterprisedb.com/
  $(lsb_release -cs)-edb/ $(lsb_release -cs) main"
  > /etc/
  apt/sources.list.d/edb-$(lsb_release -cs).list'


  2. Substitute your EnterpriseDB credentials for the username and password placeholders in the following command:

  sh -c 'echo "machine apt.enterprisedb.com login <username>
  password <password>" > /etc/apt/auth.conf.d/edb.conf'


3. Add support to your system for secure APT repositories:

apt-get install apt-transport-https

4. Add the EBD signing key:

wget -q -O - https://username:password
@apt.enterprisedb.com/edb-deb.gpg.key | apt-key add -

5. Update the repository metadata:

apt-get update

6. Install the edb-migrationtoolkit package:

apt-get -y install edb-migrationtoolkit

You can use the zypper package manager to install a Migration toolkit on an SLES 12 host. zypper will attempt to satisfy package dependencies as it installs a package, but requires access to specific repositories that are not hosted at EnterpriseDB.

1. You must assume superuser privileges and stop any firewalls before installing Migration Toolkit. Then, use the following commands to add EnterpriseDB repositories to your system:

zypper addrepo https://zypp.enterprisedb.com/suse/
edb-sles.repo

2. The command creates the repository configuration files in the /etc/zypp/repos.d directory. Use the following command to refresh the metadata on your SLES host to include the EnterpriseDB repository:

zypper refresh

When prompted, provide credentials for the repository; specify a to always trust the provided key and update the metadata to include the EnterpriseDB repository.

3. You must also add SUSEConnect and the SUSE Package Hub extension to the SLES host, and register the host with SUSE, allowing access to SUSE repositories. Use the commands:

SUSEConnect -r 'REGISTRATION_CODE' -e 'EMAIL'

SUSEConnect -p PackageHub/12.4/x86_64

SUSEConnect -p sle-sdk/12.4/x86_64

4. Install SUSEConnect to register the host with SUSE, allowing access to SUSE repositories:

zypper addrepo https://download.opensuse.org/repositories/
Apache:/Modules/SLE_12_SP4/Apache:Modules.repo

5. Use the following command to refresh the metadata:

zypper refresh

6. Install OpenJDK (version 1.8) for Java based components:

zypper -n install java-1_8_0-openjdk

7. Now you can use the zypper utility to install a Migration Toolkit:

zypper -n install edb-migrationtoolkit

For detailed information about registering a SUSE host, visit:

https://www.suse.com/support/kb/doc/?id=7016626

You can use the graphical installer to install the Migration Toolkit on Windows. You can download the installer from www.enterprisedb.com.

Once you download the installer, right-click the installer icon, and select Run As Administrator from the context menu. When the Language Selection popup opens, select an installation language and click OK to continue to the Setup window.

Note

This guide uses the term Stack Builder to refer to either StackBuilder Plus (distributed with EDB Postgres Advanced Server) or Stack Builder (distributed with the PostgreSQL one-click installer from EnterpriseDB).

You must have a Java JVM (version 1.7.0 or later) in place before Stack Builder can perform a Migration Toolkit installation.

The Java executable must be in your search path (%PATH% on Windows) Use the following commands to set the search path (substituting the name of the directory that holds the Java executable for javadir):

On Windows, use the command: SET PATH=javadir;%PATH%

After setting the search path, you can use the Stack Builder installation wizard to install Migration Toolkit into either EDB Postgres Advanced Server or PostgreSQL.

The Java executable must be in your search path (%PATH% on Windows, $PATH on Linux/Unix). Use the following commands to set the search path (substituting the name of the directory that holds the Java executable for javadir):

On Windows, use the command:

SET PATH=javadir;%PATH%

On Linux, use the command:

PATH=javadir:$PATH

After setting the search path, you can use the Stack Builder installation wizard to install Migration Toolkit into either EDB Postgres Advanced Server or PostgreSQL.

Launching StackBuilder Plus from EDB Postgres Advanced Server

To launch StackBuilder Plus from an existing EDB Postgres Advanced Server installation, navigate through the Start (or Applications) menu to the EDB Postgres menu; open the EDB Add-ons menu, and select the StackBuilder Plus menu option.

Launching Stack Builder from PostgreSQL

To launch Stack Builder from a PostgreSQL installation, navigate through the Start (or Applications) menu to the PostgreSQL menu, and select the Application StackBuilder Plus menu option.

Stack Builder opens as shown below.

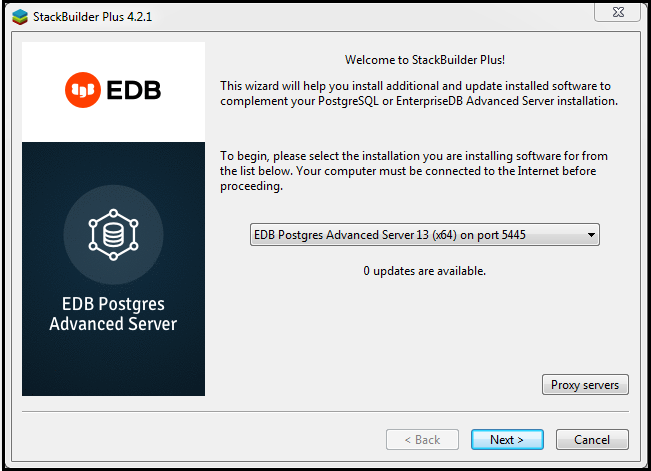

The Stack Builder welcome window.

Use the drop-down listbox to select the target server installation from the list of available servers. If your network requires you to use a proxy server to access the Internet, use the Proxy servers button to open the Proxy servers dialog and specify a server; if you do not need to use a proxy server, click Next to open the application selection window.

If you are using StackBuilder Plus to add Migration Toolkit to your EDB Postgres Advanced Server installation, expand the Add-ons, tools and utilities node of the tree control, and check the box next to EnterpriseDB Migration Toolkit. Click Next to continue.

Note

If you are using Stack Builder to add Migration Toolkit to your PostgreSQL installation, expand the EnterpriseDB Tools node of the tree control (located under the Registration-required and trial productsnode), and select Migration Toolkit checkbox. Click Next to continue.

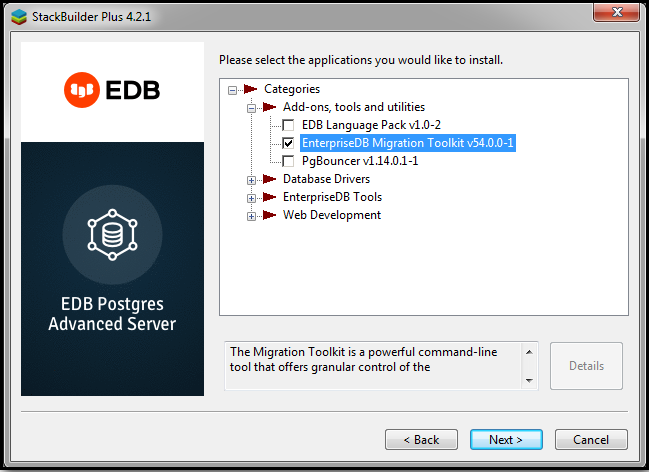

The Stack Builder application selection window.

Confirm that Migration Toolkit is included in the Selected Packages list and that the Download directory field contains an acceptable download location.

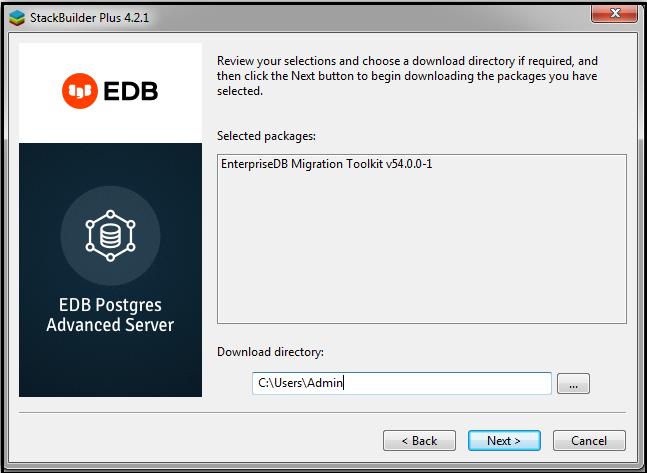

The Stack Builder selection confirmation window.

Click Next to start the Migration Toolkit download.

Stack Builder confirms the file download.

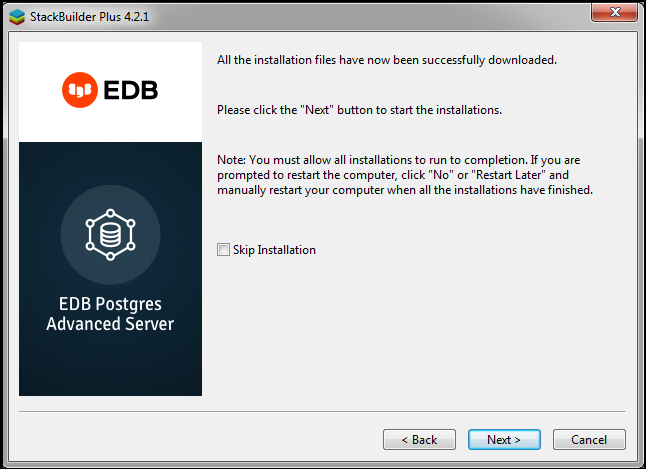

When the download completes, Stack Builder confirms that the installation files have been successfully downloaded. Choose Next to open the Migration Toolkit installation wizard.

When prompted by the Migration Toolkit installation wizard, specify a language for the installation and click OK to continue.

The Migration Toolkit installation wizard opens. Click Next to continue.

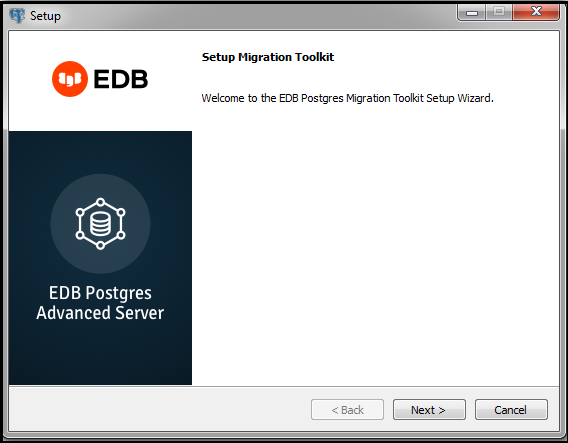

The Migration Toolkit installation wizard.

Carefully review the license agreement before highlighting the appropriate radio button; click Next to continue.

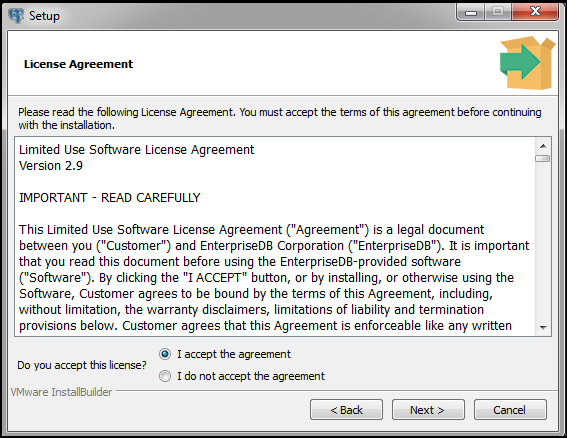

The EnterpriseDB license agreement.

By default, Migration Toolkit will be installed in the mtk directory; accept the default installation directory as displayed, or modify the directory, and click Next to continue.

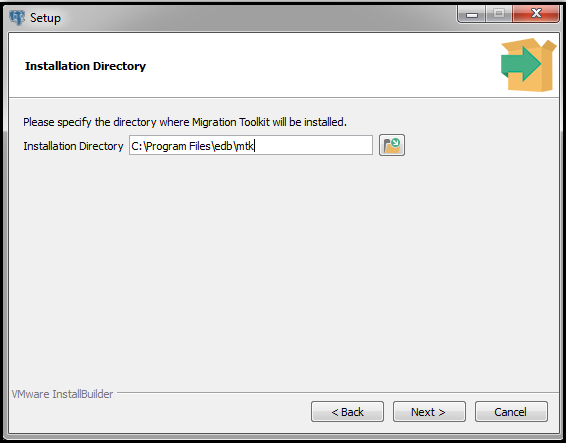

Specify a Migration Toolkit installation directory.

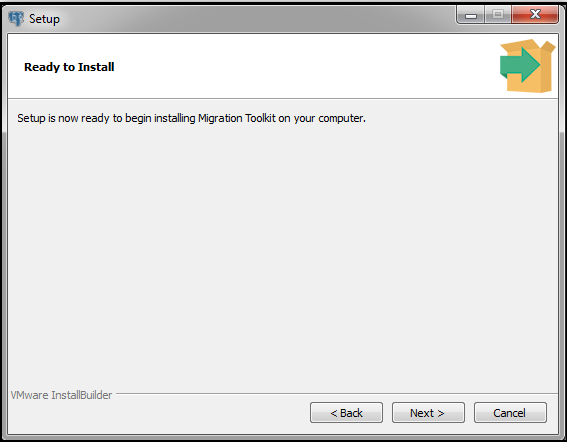

The installation wizard confirms that the Setup program is ready to install Migration Toolkit; click Next to start the installation.

Setup is ready to start the Migration Toolkit installation.

A dialog confirms that the Migration Toolkit installation is complete; click Finish to exit the Migration Toolkit installer.

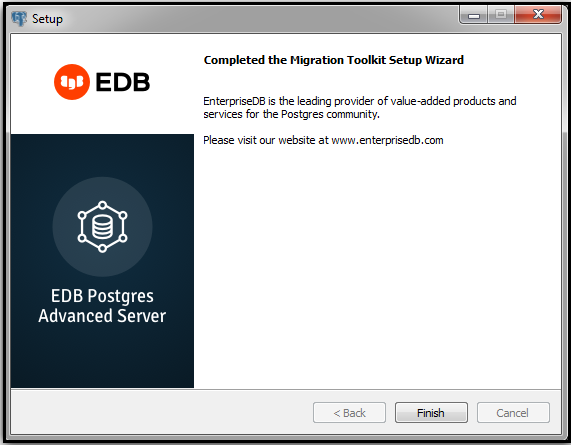

The Migration Toolkit wizard has finished.

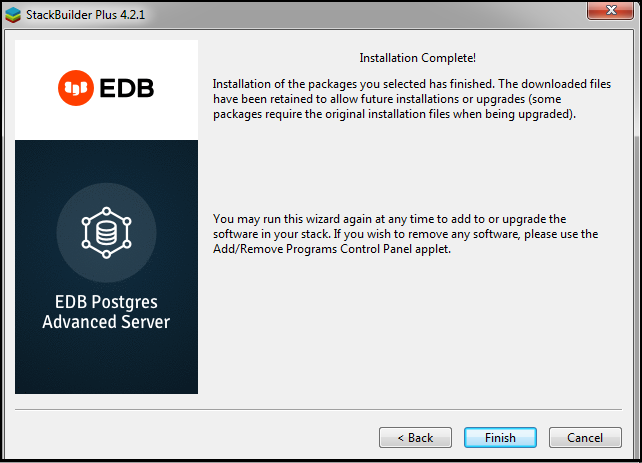

When Stack Builder finalizes installation of the last selected component, it displays the Installation Completed window. Click Finish to close Stack Builder.

Stack Builder confirms the installation is complete.

After installing Migration Toolkit with Stack Builder, you must install the appropriate source-specific drivers before performing a migration; please see Installing Source-Specific Drivers for more information.

You can use the graphical installer to install the Migration Toolkit on Mac OS X. To download the installer, visit www.enterprisedb.com.

To launch the installer:

• Navigate to the file path in the terminal:

  /<User/Directory>/Downloads/edb-migrationtoolkit-54.0.0-1-osx.app/Contents/MacOS

• Assume superuser privileges and invoke the following command:

./installbuilder.sh

1. On the Language Selection popup opens, select an installation language and click OK to continue to the Setup window.

2. The Migration Toolkit installation wizard opens. Click Next to continue.

The Migration Toolkit installation wizard.

3. Carefully review the license agreement before highlighting the appropriate radio button; click Next to continue.

The EnterpriseDB license agreement.

By default, Migration Toolkit will be installed in the mtk directory; accept the default installation directory as displayed, or modify the directory, and click Next to continue.

Specify a Migration Toolkit installation directory.

The installation wizard confirms that the Setup program is ready to install Migration Toolkit; click Next to start the installation.

Setup is ready to start the Migration Toolkit installation.

A dialog confirms that the Migration Toolkit installation is complete; click Finish to exit the Migration Toolkit installer.

The Migration Toolkit wizard has finished.

Installing Source-Specific Drivers

Before invoking Migration Toolkit, you must download and install a freely available source-specific driver. To download a driver, or for a link to a vendor download site, visit the Third Party JDBC Drivers section of the Advanced Downloads page at the EnterpriseDB website:

https://www.enterprisedb.com/advanced-downloads

After downloading the source-specific driver, move the driver file into the <mtk_install_dir>/lib directory.
