M1#

The M1 architecture is a Postgres cluster with a primary and a streaming replica, one Barman server, and any number of additional replicas cascaded from the first one. This architecture is suitable for production. It’s also suited to testing, demonstrating, and learning due to its simplicity and ability to be configured with no proprietary components.

If you select subscription-only EDB software with this architecture, it’s sourced from EDB Repos 2.0. See How TPA uses 2ndQuadrant and EDB repositories

for more detail.

Default layout#

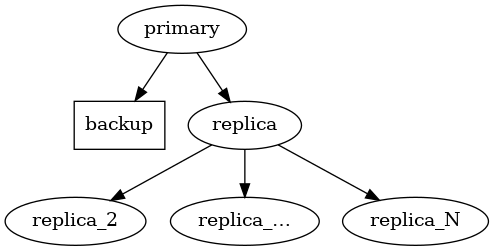

By default, the primary has one read-only replica attached in the same location. The replica, in turn, has one cascaded replica attached in a different location, where the Barman server is also configured to take backups from the primary.

If the number of Postgres nodes is even, the Barman node is also configured as a witness. Having an odd number of nodes in total helps to establish consensus in case of automatic failover.

Application and backup failover#

The M1 architecture implements failover management in that it ensures that a replica is promoted to take the place of the primary if the primary become unavailable. However it doesn’t provide any automatic facility to reroute application traffic to the primary. If you require automatic failover of application traffic, you must configure this at the application (for example using multi-host connections) or by using an appropriate proxy or load balancer and the facilities offered by your selected failover manager.

This is also true of the connection between the backup node and the primary created by TPA. The backup isn’t automatically adjusted to target the new primary in the event of failover. Instead, it remains connected to the original primary. If you’re performing a manual failover and want to connect the backup to the new primary, you can rerun tpaexec deploy . If you want to automatically change the backup source, implement this using your selected failover manager.

Cluster configuration#

Overview of configuration options#

This example shows an invocation of tpaexec configure for this architecture:

tpaexec configure ~/clusters/m1 \
         --architecture M1 \
         --platform aws --region eu-west-1 --instance-type t3.micro \
         --distribution Debian \
         --postgresql 14 \
         --failover-manager repmgr

You can list all available options using the help command:

tpaexec configure --architecture M1 --help

Mandatory options#

Parameter	Description
--architecture (-a)	Must be set to M1.
Postgres flavour and version (e.g. --postgresql 15)	A valid Configuring lvm-direct for production .
One of: * --failover-manager {efm, repmgr, patroni} * --enable-efm * --enable-repmgr * --enable-patroni	Select the failover manager from Configuring lvm-direct for production , Configuring lvm-direct for production and Configuring lvm-direct for production .

Additional options#

Parameter	Description	Behavior if omitted
--platform	One of aws, docker, bare.	Defaults to aws.
--num-cascaded-replicas	The number of cascaded replicas from the first replica.	Defaults to 1.
--enable-haproxy	2 additional nodes will be added as a load balancer layer. Only supported with Patroni as the failover manager.	HAproxy nodes will not be added to the cluster.
--patroni-dcs	Select the Distributed Configuration Store backend for patroni. Only option is etcd at this time. Only supported with Patroni as the failover manager.	Defaults to etcd.

More detail about M1 configuration#

You can optionally specify --num-cascaded-replicas N to request N cascaded replicas (including 0 for none; default: 1).

You can also specify any of the options described by tpaexec help configure-options .
