Red Hat OpenShift#
EDB Postgres for Kubernetes is certified to run on Red Hat OpenShift Container Platform (OCP) version 4.x
and is available directly from the Red Hat Catalog .
The goal of this section is to help you decide the best installation method for EDB Postgres for Kubernetes based on your organizations’ security and access control policies.
The first and critical step is to design the Architecture of your PostgreSQL clusters in your OpenShift environment.
Once the architecture is clear, you can proceed with the installation. EDB Postgres for Kubernetes can be installed and managed via:
OpenShift command-line interface (CLI) called
oc, for full control
EDB Postgres for Kubernetes supports all available install modes defined by OpenShift:
cluster-wide, in all namespaces
local, in a single namespace
local, watching multiple namespaces (only available using
oc)
Note
A project is a Kubernetes namespace with additional annotations, and is the central vehicle by which access to resources for regular users is managed.
In most cases, the default cluster-wide installation of EDB Postgres for Kubernetes is the recommended one, with either central management of PostgreSQL clusters or delegated management (limited to specific users/projects according to RBAC definitions - see Important OpenShift concepts
and Users and Permissions below).
Important
Both the installation and upgrade processes require access to an OpenShift Container Platform cluster using an account with cluster-admin permissions. From Default cluster roles , a cluster-admin is _"a super-user that can perform any action in any project. When bound to a user with a local binding, they have full control over quota and every action on every resource in the project"_.
Architecture#
The same concepts that have been included in the generic Kubernetes/PostgreSQL architecture page
apply for OpenShift as well.
Here as well, the critical factor is the number of availability zones or data centers for your OpenShift environment.
As outlined in the Disaster Recovery Strategies for Applications Running on OpenShift
blog article written by Raffaele Spazzoli back in 2020 about stateful applications, in order to fully exploit EDB Postgres for Kubernetes, you need to plan, design and implement an OpenShift cluster spanning 3 or more availability zones. While this doesn’t pose an issue in most of the public cloud provider deployments, it is definitely a challenge in on-premise scenarios.
If your OpenShift cluster has only one availability zone, the zone is your Single Point of Failure (SPoF) from a High Availability standpoint - provided that you have wisely adopted a share-nothing architecture, making sure that your PostgreSQL clusters have at least one standby (two if using synchronous replication), and that each PostgreSQL instance runs on a different Kubernetes worker node using different storage. Make sure that continuous backup data is stored additionally in a storage service outside the OpenShift cluster, allowing you to perform Disaster Recovery operations beyond your data center.
Most likely you will have another OpenShift cluster in another data center, either in the same metropolitan area or in another region, in an active/passive strategy. You can set up an independent Replica Clusters , with the understanding that this is primarily a Disaster Recovery solution - very effective but with some limitations that require manual intervention, as explained in the feature page. The same solution can be applied to additional OpenShift clusters, even in a cascading manner.
On the other hand, if your OpenShift cluster spans multiple availability zones in a region, you can fully leverage the capabilities of the operator for resilience and self-healing, and the region can become your SPoF, i.e. it would take a full region outage to bring down your cluster. Moreover, you can take advantage of multiple OpenShift clusters in different regions by setting up replica clusters, as previously mentioned.
Reserving Nodes for PostgreSQL Workloads#
For optimal performance and resource allocation in your PostgreSQL
database operations, it is highly recommended to isolate PostgreSQL
workloads by dedicating specific worker nodes solely to postgres in
production. This is particularly crucial whether you’re operating in a
single availability zone or a multi-availability zone environment.
A worker node in OpenShift that is dedicated to running PostgreSQL
workloads is commonly referred to as a Postgres node or postgres
node.
This dedicated approach ensures that your PostgreSQL workloads are not competing for resources with other applications, leading to enhanced stability and performance.
For further details, please refer to the Reserving Nodes for PostgreSQL Workloads
documentation. The primary difference when working in OpenShift involves how labels and taints are applied to the nodes, as described below.
To label a node as a postgres node, execute the following command:
oc label node <NODE-NAME> node-role.kubernetes.io/postgres=
To apply a postgres taint to a node, use the following command:
oc adm taint node <NODE-NAME> node-role.kubernetes.io/postgres=:NoSchedule
By correctly labeling and tainting your nodes, you ensure that only PostgreSQL workloads are scheduled on these dedicated nodes via affinity and tolerations, reinforcing the stability and performance of your database environment.
Important OpenShift concepts#
To understand how the EDB Postgres for Kubernetes operator fits in an OpenShift environment, you must familiarize yourself with the following Kubernetes-related topics:
Operators
Authentication
Authorization via Role-based Access Control (RBAC)
Service Accounts and Users
Rules, Roles and Bindings
Cluster RBAC vs local RBAC through projects
This is especially true in case you are not comfortable with the elevated permissions required by the default cluster-wide installation of the operator.

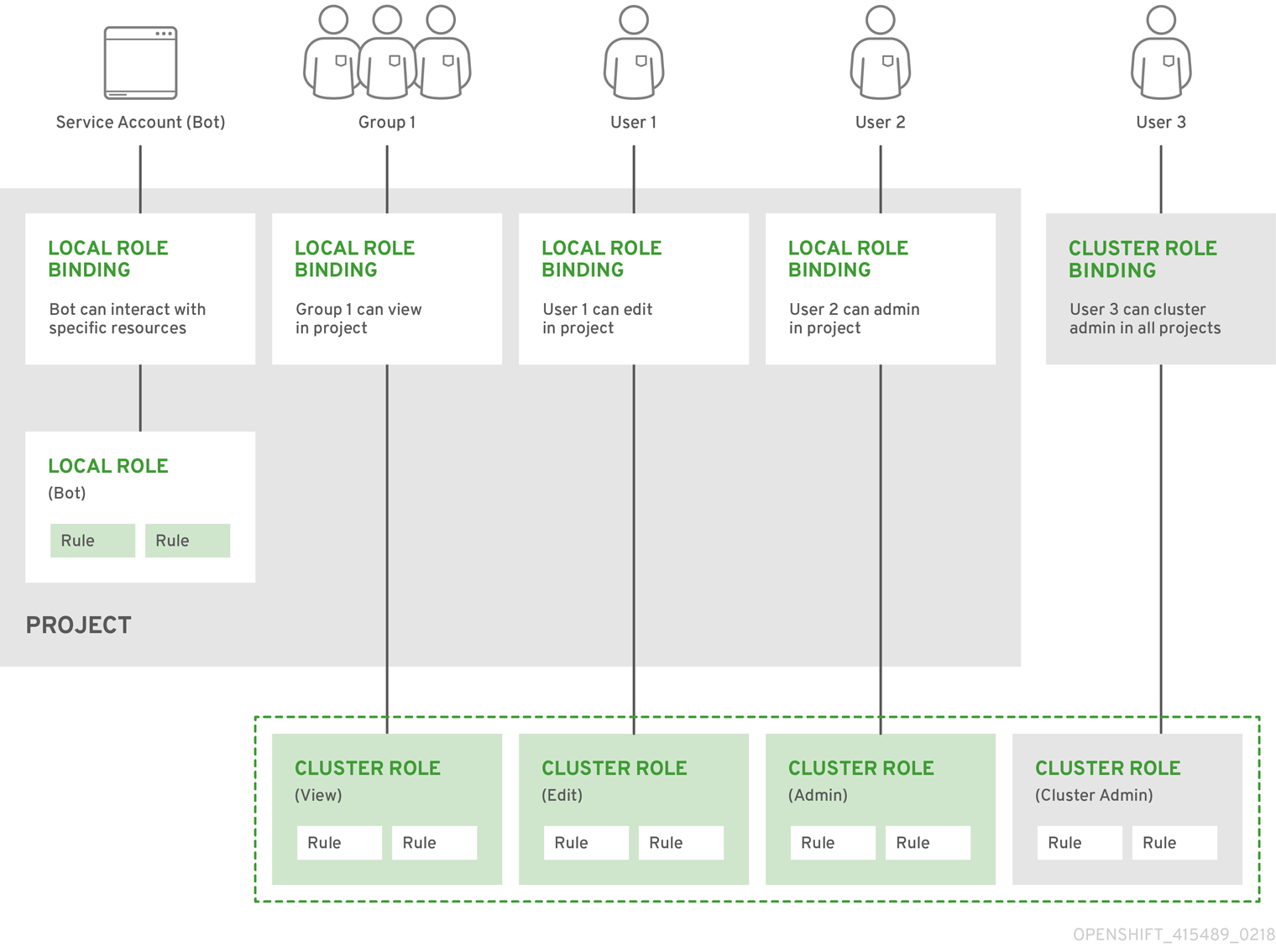

We have also selected the diagram below from the OpenShift documentation, as it clearly illustrates the relationships between cluster roles, local roles, cluster role bindings, local role bindings, users, groups and service accounts.
The Predefined RBAC
objects below contains important
information about how EDB Postgres for Kubernetes adheres to Kubernetes
and OpenShift RBAC implementation, covering default installed cluster
roles, roles, service accounts.
If you are familiar with the above concepts, you can proceed directly to the selected installation method. Otherwise, we recommend that you read the following resources taken from the OpenShift documentation and the Red Hat blog:
Role-based access control (RBAC) , covering rules, roles and bindings for authorization, as well as cluster RBAC vs local RBAC through projects
Cluster Service Version (CSV)#
Technically, the operator is designed to run in OpenShift via the Operator Lifecycle Manager (OLM), according to the Cluster Service Version (CSV) defined by EDB.
The CSV is a YAML manifest that defines not only the user interfaces
(available through the web dashboard), but also the RBAC rules required
by the operator and the custom resources defined and owned by the
operator (such as the Cluster one, for example). The CSV defines
also the available installModes for the operator, namely:
AllNamespaces (cluster-wide), SingleNamespace (single project),
MultiNamespace (multi-project), and OwnNamespace .
See also
You can find out more about CSVs and install modes by reading Operator group membership
and Defining cluster service versions (CSVs)
from the OpenShift documentation.
Limitations for multi-tenant management#
Red Hat OpenShift Container Platform provides limited support for simultaneously installing different variations of an operator on a single cluster. Like any other operator, EDB Postgres for Kubernetes becomes an extension of the control plane. As the control plane is shared among all tenants (projects) of an OpenShift cluster, operators too become shared resources in a multi-tenant environment.
Operator Lifecycle Manager (OLM) can install operators multiple times in different namespaces, with one important limitation: they all need to share the same API version of the operator.
For more information, please refer to Operator groups
in OpenShift documentation.
Channels#
Since the release of version 1.16.0, EDB Postgres for Kubernetes is available in the following OLM channels :
fast: the head version in the channel is always the latest available patch release in the latest available minor release of EDB Postgres for Kubernetesstable-vX.Y: the head version in the channel is always the latest available patch release in the X.Y minor release of EDB Postgres for Kubernetes
While fast might contain versions spanning over multiple minor
versions, the stable-vX.Y branches include only patch versions of
the same minor release.
Considering the both CloudNativePG and EDB Postgres for Kubernetes are
developed using the trunk development and continuous delivery DevOps
principles, our recommendation is to use the fast channel.
Installation via web console#
Ensuring access to EDB private registry#
Important
You'll need access to the private EDB repository where both the operator and operand images are stored. Access requires a valid EDB subscription plan . Please refer to Accessing EDB private image registries for further details.
The OpenShift install will use pull secrets in order to access the operand and operator images, which are held in a private repository.
Once you have credentials to the private repository, you will need to
create a pull secret in the openshift-operators namespace, named:
postgresql-operator-pull-secret, for the EDB Postgres for Kubernetes operator images
You can create each secret via the oc create command, as follows:
oc create secret docker-registry postgresql-operator-pull-secret \
-n openshift-operators --docker-server=docker.enterprisedb.com \
--docker-username="@@REPOSITORY@@" \
--docker-password="@@TOKEN@@"
where:
@@REPOSITORY@@is the name of the repository, as explained in Which repository to choose?@@TOKEN@@is the repository token for your EDB account, as explained in How to retrieve the token
The EDB Postgres for Kubernetes operator can be found in the Red Hat OperatorHub directly from your OpenShift dashboard.
Navigate in the web console to the
Operators -> OperatorHubpage:
Menu OperatorHub#
Scroll in the
Databasesection or type a keyword into theFilter by keywordbox (in this case, “PostgreSQL”) to find the EDB Postgres for Kubernetes Operator, then select it:
Install OperatorHub#
Read the information about the Operator and select
Install.The following
Operator installationpage expects you to choose:
the installation mode: Cluster-wide installation or Single project installation installation
the update channel (see Channels for more information - if unsure, pick
fast)the approval strategy, following the availability on the market place of a new release of the operator, certified by Red Hat:
Automatic: OLM automatically upgrades the running operator with the new versionManual: OpenShift waits for human intervention, by requiring an approval in theInstalled Operatorssection
Important
The process of the operator upgrade is described in the Installation and upgrades .
Important
It is possible to install the operator in a single project (technically speaking: OwnNamespace install mode) multiple times in the same cluster. There will be an operator installation in every namespace, with different upgrade policies as long as the API is the same (see Limitations for multi-tenant management ).
Choosing cluster-wide vs local installation of the operator is a critical turning point. Trying to install the operator globally with an existing local installation is blocked, by throwing the error below. If you want to proceed you need to remove every local installation of the operator first.

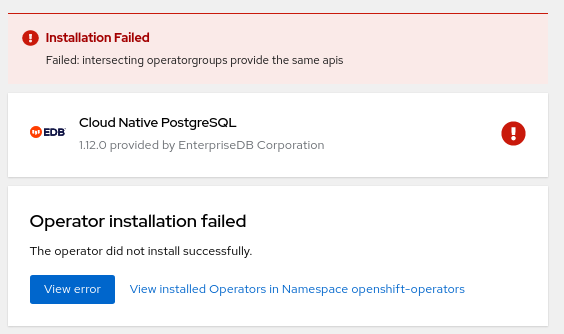

Install failing#
Cluster-wide installation#
With cluster-wide installation, you are asking OpenShift to install the
Operator in the default openshift-operators namespace and to make it
available to all the projects in the cluster. This is the default and
normally recommended approach to install EDB Postgres for Kubernetes.
Warning
This doesn't mean that every user in the OpenShift cluster can use the EDB Postgres for Kubernetes Operator, deploy a Cluster object or even see the Cluster objects that are running in their own namespaces. There are some special roles that users must have in the namespace in order to interact with EDB Postgres for Kubernetes' managed custom resources - primarily the Cluster one. Please refer to the Users and Permissions for details.

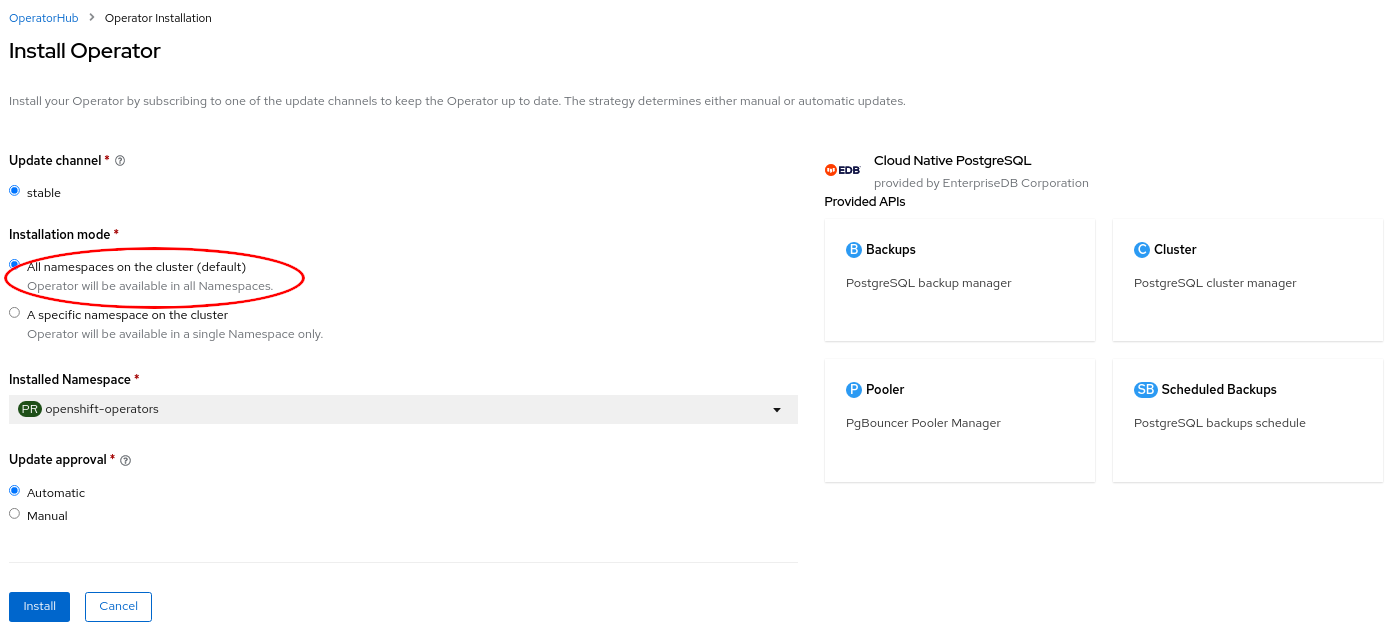

From the web console, select All namespaces on the cluster (default)
as Installation mode :
Install all namespaces#
As a result, the operator will be visible in every namespaces.
Otherwise, as with any other OpenShift operator, check the logs in any
pods in the openshift-operators project on the Workloads → Pods
page that are reporting issues to troubleshoot further.
Single project installation#
With single project installation, you are asking OpenShift to install the Operator in a given namespace, and to make it available to that project only.
Warning
This doesn't mean that every user in the namespace can use the EDB Postgres for Kubernetes Operator, deploy a Cluster object or even see the Cluster objects that are running in the namespace. Similarly to the cluster-wide installation mode, there are some special roles that users must have in the namespace in order to interact with EDB Postgres for Kubernetes' managed custom resources - primarily the Cluster one. Please refer to the Users and Permissions
for details.

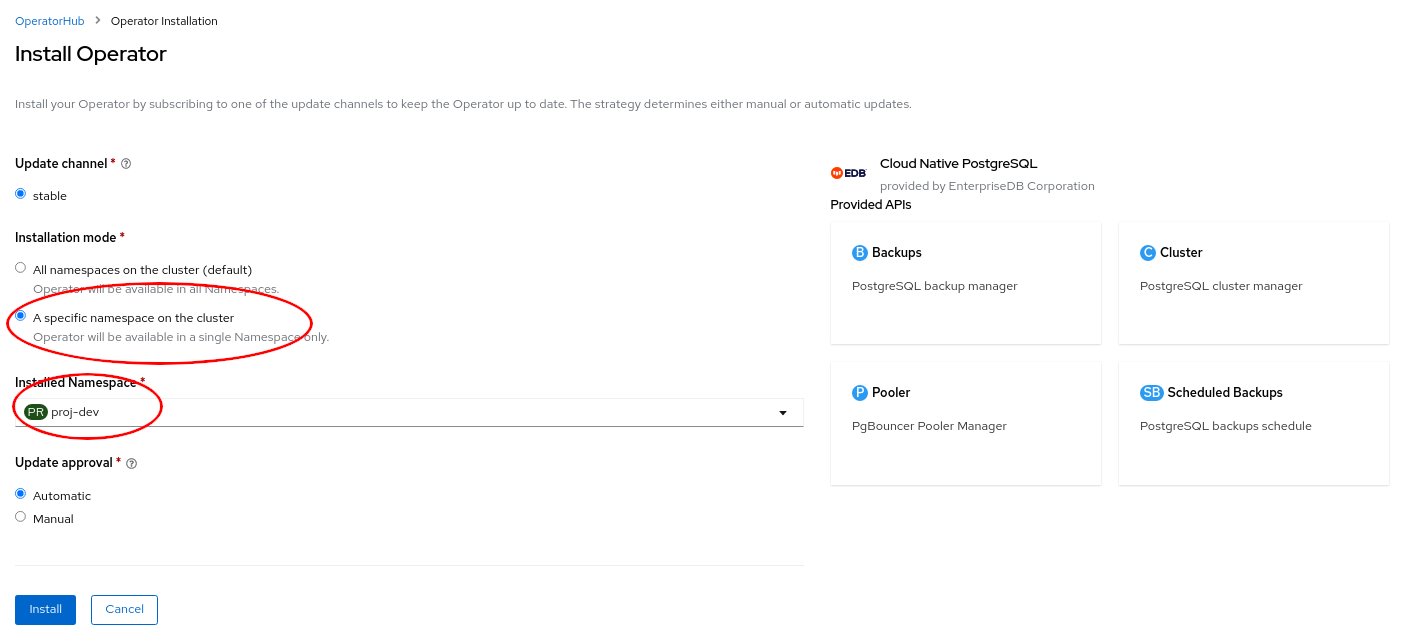

From the web console, select A specific namespace on the cluster as
Installation mode , then pick the target namespace (in our example
proj-dev ):
Install one namespace#
As a result, the operator will be visible in the selected namespace
only. You can verify this from the Installed operators page:
Install one namespace list#
In case of a problem, from the Workloads → Pods page check the logs
in any pods in the selected installation namespace that are reporting
issues to troubleshoot further.
This installation process can be repeated in multiple namespaces in the same OpenShift cluster, enabling independent installations of the operator in different projects. In this case, make sure you read Limitations for multi-tenant management .
Installation via the oc CLI#
Important
Please refer to the Installing the OpenShift CLI (`oc ) <Installing the OpenShift CLI (oc )>`
for information on how to install the oc command-line interface.
Instead of using the OpenShift Container Platform web console, you can
install the EDB Postgres for Kubernetes Operator from the OperatorHub
and create a subscription using the oc command-line interface.
Through the oc CLI you can install the operator in all namespaces, a
single namespace or multiple namespaces.
Warning
Multiple namespace installation is currently supported by OpenShift. However, definition of multiple target namespaces for an operator may be removed in future versions of OpenShift .
This section primarily covers the installation of the operator in
multiple projects with a simple example, by creating an
OperatorGroup and a Subscription objects.
Note
In our example, we will install the operator in the my-operators namespace and make it only available in the web-staging , web-prod , bi-staging , and bi-prod namespaces. Feel free to change the names of the projects as you like or add/remove some namespaces.
Check that the
cloud-native-postgresqloperator is available from the OperatorHub:
oc get packagemanifests -n openshift-marketplace cloud-native-postgresql
Inspect the operator to verify the installation modes (
MultiNamespacein particular) and the available channels:
oc describe packagemanifests -n openshift-marketplace cloud-native-postgresql
Create an
OperatorGroupobject in themy-operatorsnamespace so that it targets theweb-staging,web-prod,bi-staging, andbi-prodnamespaces:
apiVersion: operators.coreos.com/v1
kind: OperatorGroup
metadata:
name: cloud-native-postgresql
namespace: my-operators
spec:
targetNamespaces:
- web-staging
- web-prod
- bi-staging
- bi-prod
Important
Alternatively, you can list namespaces using a label selector, as explained in Target namespace selection .
Create a
Subscriptionobject in themy-operatorsnamespace to subscribe to thefastchannel of thecloud-native-postgresqloperator that is available in thecertified-operatorssource of theopenshift-marketplace(as previously located in steps 1 and 2):
apiVersion: operators.coreos.com/v1alpha1
kind: Subscription
metadata:
name: cloud-native-postgresql
namespace: my-operators
spec:
channel: fast
name: cloud-native-postgresql
source: certified-operators
sourceNamespace: openshift-marketplace
Use
oc apply -fwith the above YAML file definitions for theOperatorGroupandSubscriptionobjects.
The method described in this section can be very powerful in conjunction
with proper RoleBinding objects, as it enables mapping EDB Postgres
for Kubernetes’ predefined ClusterRole s to specific users in
selected namespaces.
Note
The above instructions can also be used for single project binding. The only difference is the number of specified target namespaces (one) and, possibly, the namespace of the operator group (ideally, the same as the target namespace).

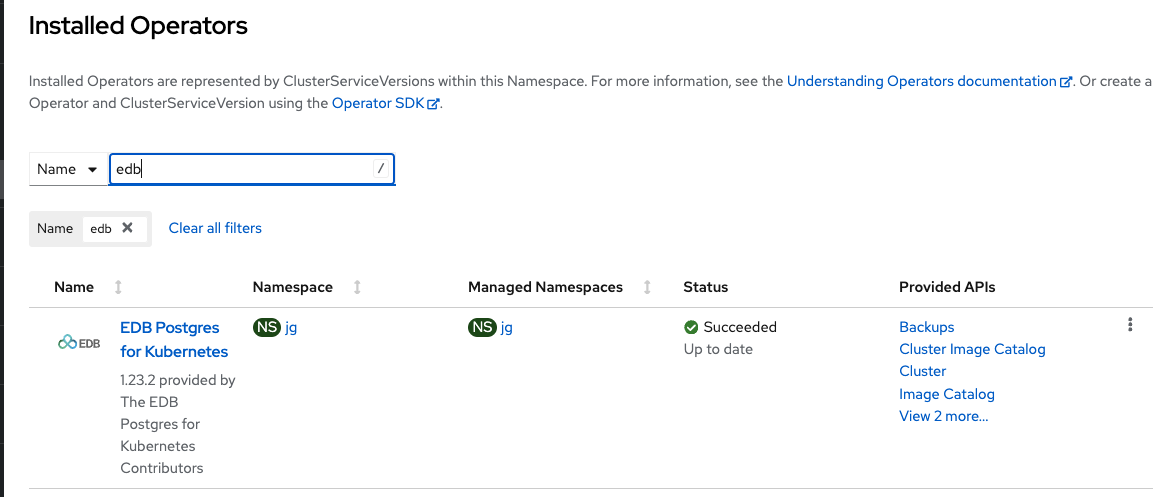

The result of the above operation can also be verified from the webconsole, as shown in the image below.
Multi namespace installation displayed in the web console#
Cluster-wide installation with oc#
If you prefer, you can also use oc to install the operator globally,
by taking advantage of the default OperatorGroup called
global-operators in the openshift-operators namespace, and
create a new Subscription object for the cloud-native-postgresql
operator in the same namespace:
apiVersion: operators.coreos.com/v1alpha1
kind: Subscription
metadata:
name: cloud-native-postgresql
namespace: openshift-operators
spec:
channel: fast
name: cloud-native-postgresql
source: certified-operators
sourceNamespace: openshift-marketplace
Once you run oc apply -f with the above YAML file, the operator will
be available in all namespaces.

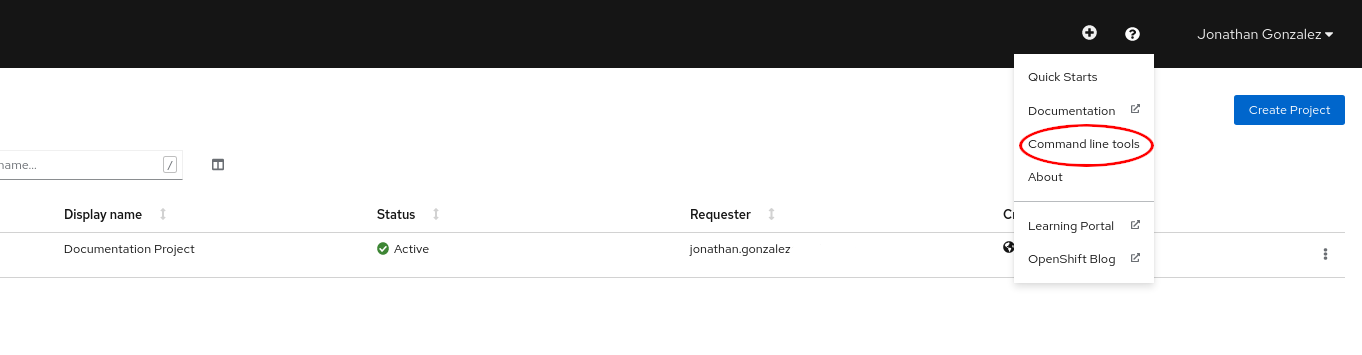

Installing the OpenShift CLI (oc )#
The oc command represents the OpenShift command-line interface
(CLI). It is highly recommended to install it on your system. Below you
find a basic set of instructions to install oc from your OpenShift
dashboard.
First, select the question mark at the top right corner of the dashboard:
Command Line Tools menu#
Then follow the instructions you are given, by downloading the binary that suits your needs in terms of operating system and architecture:
Command Line Tools#
See also
For more detailed and updated information, please refer to the official OpenShift CLI documentation
directly maintained by Red Hat.
Upgrading the operator#
In order to upgrade your operator safely, you need to be in a
stable-vX.Y channel, or the fast channel if you want to follow
the head of the development trunk of EDB Postgres for Kubernetes.
If you are currently in the stable channel, you need to either
choose fast or progressively move to the latest Long Term Supported
release of EDB Postgres for Kubernetes - currently stable-v1.25 .
Important
We have made a change to the way conditions are represented in the status of the operator in version 1.16.0, 1.15.2, and onward. This change could cause an operator upgrade to hang on Openshift, if one of the old conditions are set during the upgrade process, because of the way the Operator Lifecycle Manager checks new CRDs against existing CRs. To avoid this issue, you need to upgrade to version 1.15.5 first, which will automatically remove the offending conditions from all the cluster CRs that prevent Openshift from upgrading.
Predefined RBAC objects#
EDB Postgres for Kubernetes comes with a predefined set of resources that play an important role when it comes to RBAC policy configuration.
Custom Resource Definitions (CRD)#
The EDB Postgres for Kubernetes operator owns the following custom resource definitions (CRD):
BackupClusterPoolerScheduledBackupImageCatalogClusterImageCatalog
You can verify this by running:
oc get customresourcedefinitions.apiextensions.k8s.io | grep postgresql
which returns something similar to:
backups.postgresql.k8s.enterprisedb.io 20YY-MM-DDTHH:MM:SSZ
clusterimagecatalogs.postgresql.k8s.enterprisedb.io 20YY-MM-DDTHH:MM:SSZ
clusters.postgresql.k8s.enterprisedb.io 20YY-MM-DDTHH:MM:SSZ
imagecatalogs.postgresql.k8s.enterprisedb.io 20YY-MM-DDTHH:MM:SSZ
poolers.postgresql.k8s.enterprisedb.io 20YY-MM-DDTHH:MM:SSZ
scheduledbackups.postgresql.k8s.enterprisedb.io 20YY-MM-DDTHH:MM:SSZ
Service accounts#
The namespace where the operator has been installed (by default
openshift-operators ) contains the following predefined service
accounts: builder , default , deployer , and most
importantly postgresql-operator-manager (managed by the CSV).
Important
Service accounts in Kubernetes are namespaced resources. Unless explicitly authorized, a service account cannot be accessed outside the defined namespace.
You can verify this by running:
oc get serviceaccounts -n openshift-operators
which returns something similar to:
NAME SECRETS AGE
builder 2 ...
default 2 ...
deployer 2 ...
postgresql-operator-manager 2 ...
The default service account is automatically created by Kubernetes
and present in every namespace. The builder and deployer service
accounts are automatically created by OpenShift (see Default project service accounts and roles ).
The postgresql-operator-manager service account is the one used by
the Cloud Native PostgreSQL operator to work as part of the
Kubernetes/OpenShift control plane in managing PostgreSQL clusters.
Important
Do not delete the postgresql-operator-manager ServiceAccount as it can stop the operator from working.
Cluster roles#
The Operator Lifecycle Manager (OLM) automatically creates a set of cluster role objects to facilitate role binding definitions and granular implementation of RBAC policies. Some cluster roles have rules that apply to Custom Resource Definitions that are part of EDB Postgres for Kubernetes, while others that are part of the broader Kubernetes/OpenShift realm.
Cluster roles on EDB Postgres for Kubernetes CRDs#
For every CRD owned by EDB Postgres for Kubernetes' CSV , OLM deploys some predefined cluster roles that can be used by customer facing users and service accounts. In particular:
a role for the full administration of the resource (
adminsuffix)a role to edit the resource (
editsuffix)a role to view the resource (
viewsuffix)a role to view the actual CRD (
crdviewsuffix)
Important
Cluster roles per se are no security threat. They are the recommended way in OpenShift to define templates for roles to be later "bound" to actual users in a specific project or globally. Indeed, cluster roles can be used in conjunction with ClusterRoleBinding objects for global permissions or with RoleBinding objects for local permissions. This makes it possible to reuse cluster roles across multiple projects while enabling customization within individual projects through local roles.
You can verify the list of predefined cluster roles by running:
oc get clusterroles | grep postgresql
which returns something similar to:
backups.postgresql.k8s.enterprisedb.io-v1-admin YYYY-MM-DDTHH:MM:SSZ
backups.postgresql.k8s.enterprisedb.io-v1-crdview YYYY-MM-DDTHH:MM:SSZ
backups.postgresql.k8s.enterprisedb.io-v1-edit YYYY-MM-DDTHH:MM:SSZ
backups.postgresql.k8s.enterprisedb.io-v1-view YYYY-MM-DDTHH:MM:SSZ
cloud-native-postgresql.VERSION-HASH YYYY-MM-DDTHH:MM:SSZ
clusterimagecatalogs.postgresql.k8s.enterprisedb.io-v1-admin YYYY-MM-DDTHH:MM:SSZ
clusterimagecatalogs.postgresql.k8s.enterprisedb.io-v1-crdview YYYY-MM-DDTHH:MM:SSZ
clusterimagecatalogs.postgresql.k8s.enterprisedb.io-v1-edit YYYY-MM-DDTHH:MM:SSZ
clusterimagecatalogs.postgresql.k8s.enterprisedb.io-v1-view YYYY-MM-DDTHH:MM:SSZ
clusters.postgresql.k8s.enterprisedb.io-v1-admin YYYY-MM-DDTHH:MM:SSZ
clusters.postgresql.k8s.enterprisedb.io-v1-crdview YYYY-MM-DDTHH:MM:SSZ
clusters.postgresql.k8s.enterprisedb.io-v1-edit YYYY-MM-DDTHH:MM:SSZ
clusters.postgresql.k8s.enterprisedb.io-v1-view YYYY-MM-DDTHH:MM:SSZ
imagecatalogs.postgresql.k8s.enterprisedb.io-v1-admin YYYY-MM-DDTHH:MM:SSZ
imagecatalogs.postgresql.k8s.enterprisedb.io-v1-crdview YYYY-MM-DDTHH:MM:SSZ
imagecatalogs.postgresql.k8s.enterprisedb.io-v1-edit YYYY-MM-DDTHH:MM:SSZ
imagecatalogs.postgresql.k8s.enterprisedb.io-v1-view YYYY-MM-DDTHH:MM:SSZ
poolers.postgresql.k8s.enterprisedb.io-v1-admin YYYY-MM-DDTHH:MM:SSZ
poolers.postgresql.k8s.enterprisedb.io-v1-crdview YYYY-MM-DDTHH:MM:SSZ
poolers.postgresql.k8s.enterprisedb.io-v1-edit YYYY-MM-DDTHH:MM:SSZ
poolers.postgresql.k8s.enterprisedb.io-v1-view YYYY-MM-DDTHH:MM:SSZ
scheduledbackups.postgresql.k8s.enterprisedb.io-v1-admin YYYY-MM-DDTHH:MM:SSZ
scheduledbackups.postgresql.k8s.enterprisedb.io-v1-crdview YYYY-MM-DDTHH:MM:SSZ
scheduledbackups.postgresql.k8s.enterprisedb.io-v1-edit YYYY-MM-DDTHH:MM:SSZ
scheduledbackups.postgresql.k8s.enterprisedb.io-v1-view YYYY-MM-DDTHH:MM:SSZ
You can inspect an actual role as any other Kubernetes resource with the
get command. For example:
oc get -o yaml clusterrole clusters.postgresql.k8s.enterprisedb.io-v1-admin
By looking at the relevant skimmed output below, you can notice that the
clusters.postgresql.k8s.enterprisedb.io-v1-admin cluster role
enables everything on the cluster resource defined by the
postgresql.k8s.enterprisedb.io API group:
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
name: clusters.postgresql.k8s.enterprisedb.io-v1-admin
rules:
- apiGroups:
- postgresql.k8s.enterprisedb.io
resources:
- clusters
verbs:
- "*"
See also
If you are interested in the actual implementation of RBAC by an OperatorGroup, please refer to the OperatorGroup: RBAC .
Cluster roles on Kubernetes CRDs#
When installing a Subscription object in a given namespace
(e.g. openshift-operators for cluster-wide installation of the
operator), OLM also creates a cluster role that is used to grant
permissions to the postgresql-operator-manager service account that
the operator uses. The name of this cluster role varies, as it depends
on the installed version of the operator and the time of installation.
You can retrieve it by running the following command:
oc get clusterrole --selector=olm.owner.kind=ClusterServiceVersion
You can then use the name returned by the above query (which should have
the form of cloud-native-postgresql.VERSION-HASH ) to look at the
rules, resources and verbs via the describe command:
oc describe clusterrole cloud-native-postgresql.VERSION-HASH
Name: cloud-native-postgresql.VERSION.HASH
Labels: olm.owner=cloud-native-postgresql.VERSION
olm.owner.kind=ClusterServiceVersion
olm.owner.namespace=openshift-operators
operators.coreos.com/cloud-native-postgresql.openshift-operators=
Annotations: <none>
PolicyRule:
Resources Non-Resource URLs Resource Names Verbs
--------- ----------------- -------------- -----
configmaps [] [] [create delete get list patch update watch]
secrets [] [] [create delete get list patch update watch]
services [] [] [create delete get list patch update watch]
deployments.apps [] [] [create delete get list patch update watch]
poddisruptionbudgets.policy [] [] [create delete get list patch update watch]
backups.postgresql.k8s.enterprisedb.io [] [] [create delete get list patch update watch]
clusters.postgresql.k8s.enterprisedb.io [] [] [create delete get list patch update watch]
poolers.postgresql.k8s.enterprisedb.io [] [] [create delete get list patch update watch]
scheduledbackups.postgresql.k8s.enterprisedb.io [] [] [create delete get list patch update watch]
persistentvolumeclaims [] [] [create delete get list patch watch]
pods/exec [] [] [create delete get list patch watch]
pods [] [] [create delete get list patch watch]
jobs.batch [] [] [create delete get list patch watch]
podmonitors.monitoring.coreos.com [] [] [create delete get list patch watch]
serviceaccounts [] [] [create get list patch update watch]
rolebindings.rbac.authorization.k8s.io [] [] [create get list patch update watch]
roles.rbac.authorization.k8s.io [] [] [create get list patch update watch]
leases.coordination.k8s.io [] [] [create get update]
events [] [] [create patch]
mutatingwebhookconfigurations.admissionregistration.k8s.io [] [] [get list update]
validatingwebhookconfigurations.admissionregistration.k8s.io [] [] [get list update]
customresourcedefinitions.apiextensions.k8s.io [] [] [get list update]
namespaces [] [] [get list watch]
nodes [] [] [get list watch]
clusters.postgresql.k8s.enterprisedb.io/status [] [] [get patch update watch]
poolers.postgresql.k8s.enterprisedb.io/status [] [] [get patch update watch]
configmaps/status [] [] [get patch update]
secrets/status [] [] [get patch update]
backups.postgresql.k8s.enterprisedb.io/status [] [] [get patch update]
scheduledbackups.postgresql.k8s.enterprisedb.io/status [] [] [get patch update]
pods/status [] [] [get]
clusters.postgresql.k8s.enterprisedb.io/finalizers [] [] [update]
poolers.postgresql.k8s.enterprisedb.io/finalizers [] [] [update]
Important
The above permissions are exclusively reserved for the operator's service account to interact with the Kubernetes API server. They are not directly accessible by the users of the operator that interact only with Cluster , Pooler , Backup , and ScheduledBackup resources (see Cluster roles on EDB Postgres for Kubernetes CRDs ).
The operator automates in a declarative way a lot of operations related to PostgreSQL management that otherwise would require manual and imperative interventions. Such operations also include security related matters at RBAC (e.g. service accounts), pod (e.g. security context constraints) and Postgres levels (e.g. TLS certificates).
For more information about the reasons why the operator needs these elevated permissions, please refer to the Security / Cluster / RBAC .
Users and Permissions#
A very common way to use the EDB Postgres for Kubernetes operator is to
rely on the cluster-admin role and manage resources centrally.
Alternatively, you can use the RBAC framework made available by Kubernetes/OpenShift, as with any other operator or resources.
For example, you might be interested in binding the
clusters.postgresql.k8s.enterprisedb.io-v1-admin cluster role to
specific groups or users in a specific namespace, as any other cloud
native application. The following example binds that cluster role to a
specific user in the web-prod project:
kind: RoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
name: web-prod-admin
namespace: web-prod
subjects:
- kind: User
apiGroup: rbac.authorization.k8s.io
name: mario@cioni.org
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: clusters.postgresql.k8s.enterprisedb.io-v1-admin
The same process can be repeated with any other predefined
ClusterRole .
If, on the other hand, you prefer not to use cluster roles, you can create specific namespaced roles like in this example:
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
name: web-prod-view
namespace: web-prod
rules:
- apiGroups:
- postgresql.k8s.enterprisedb.io
resources:
- clusters
verbs:
- get
- list
- watch
Then, assign this role to a given user:
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
name: web-prod-view
namespace: web-prod
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: Role
name: web-prod-view
subjects:
- apiGroup: rbac.authorization.k8s.io
kind: User
name: web-prod-developer1
This final example creates a role with administration permissions
(verbs is equal to * ) to all the resources managed by the
operator in that namespace (web-prod ):
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
name: web-prod-admin
namespace: web-prod
rules:
- apiGroups:
- postgresql.k8s.enterprisedb.io
resources:
- clusters
- backups
- scheduledbackups
- poolers
verbs:
- "*"
Pod Security Standards#
EDB Postgres for Kubernetes on OpenShift supports the restricted and
restricted-v2 SCC (SecurityContextConstraints ), which vary
depending on the version of EDB Postgres for Kubernetes and OpenShift
you are running. Please pay close attention to the following table and
notes:
EDB Postgres for Kubernetes Version |
OpenShift Versions |
Supported SCC |
|---|---|---|
1.25.x |
4.12-4.18 |
restricted, restricted-v2 |
1.24.x |
4.12-4.17 |
restricted, restricted-v2 |
1.23.x |
4.12-4.16 |
restricted, restricted-v2 |
1.22.x |
4.12-4.16 |
restricted, restricted-v2 |
Important
Since version 4.10 only provides restricted , EDB Postgres for Kubernetes versions 1.18 and 1.19 support restricted . Future releases of EDB Postgres for Kubernetes are not guaranteed to support restricted , since in Openshift 4.11 restricted was replaced with restricted-v2 .
Since the operator has been developed with a security focus from the beginning, in addition to always adhering to the Red Hat Certification process, EDB Postgres for Kubernetes works under the new SCCs introduced in OpenShift 4.11.
By default, EDB Postgres for Kubernetes will drop all capabilities. This ensures that during its lifecycle the operator will never make use of any unsafe capabilities.
On OpenShift we inherit the SecurityContext.SeccompProfile for each
Pod from the OpenShift deployment, which in turn is set by the Pod
Security Admission Controller.
Note
Even if nonroot-v2 and hostnetwork-v2 are qualified as less restricted SCCs, we don't run tests on them, and therefore we cannot guarantee that these SCCs will work. That being said, nonroot-v2 and hostnetwork-v2 are a subset of rules in restricted-v2 so there is no reason to believe that they would not work.
Customization of the Pooler image#
By default, the Pooler resource creates pods having the
pgbouncer container that runs with the
quay.io/enterprisedb/pgbouncer image.
You can change the image name from the advanced interface, specifically by opening the “Template” section, then selecting “Add container” under “Spec > Containers”:

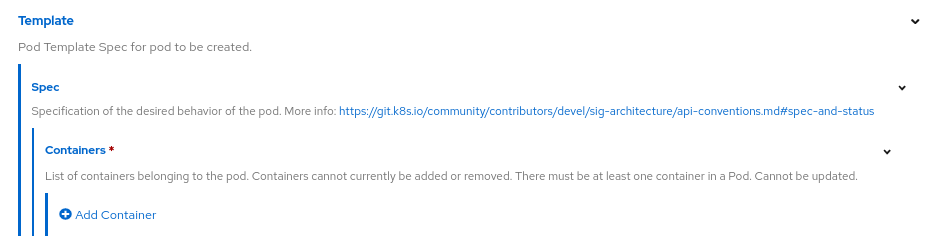

Pooler template#
Then:
set
pgbounceras the name of the container (required field in the pod template)set the “Image” field as desired (see the image below)

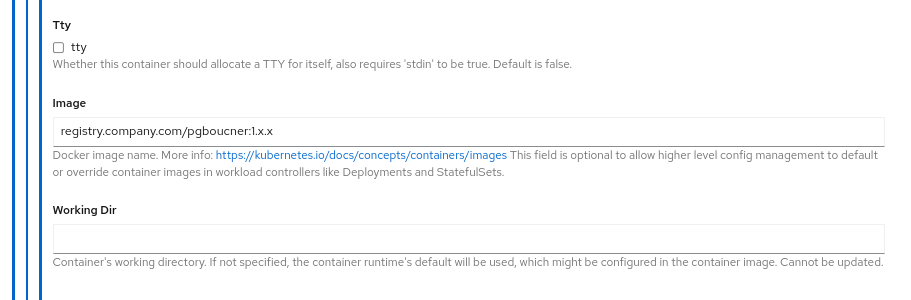

Pooler image#
OADP for Velero#
The EDB Postgres for Kubernetes operator recommends the use of the Openshift API for Data Protection operator for managing Velero
in OpenShift environments. Specific details about how EDB Postgres for Kubernetes integrates with Velero can be found in the Velero section of the Addons documentation. The OADP operator
is a community operator that is not directly supported by EDB. The OADP operator is not required to use Velero with EDB Postgres but is a convenient way to install Velero on OpenShift.
Monitoring and metrics#
OpenShift includes a Prometheus installation out of the box that can be leveraged for user-defined projects, including EDB Postgres for Kubernetes.
Grafana integration is out of scope for this guide, as Grafana is no longer included with OpenShift.
In this section, we show you how to get started with basic observability, leveraging the default OpenShift installation.
Please refer to the OpenShift monitoring stack overview
for further background.
Depending on your OpenShift configuration, you may need to do a bit of setup before you can monitor your EDB Postgres for Kubernetes clusters.
You will need to have your OpenShift configured to enable monitoring for user-defined projects .
You should check, perhaps with your OpenShift administrator, if your
installation has the cluster-monitoring-config configMap, and if so,
if user workload monitoring is enabled.
You can check for the presence of this configMap (note that it
should be in the openshift-monitoring namespace):
oc -n openshift-monitoring get configmap cluster-monitoring-config
To enable user workload monitoring, you might want to oc apply or
oc edit the configmap to look something like this:
apiVersion: v1
kind: ConfigMap
metadata:
name: cluster-monitoring-config
namespace: openshift-monitoring
data:
config.yaml: |
enableUserWorkload: true
After enableUserWorkload is set, several monitoring components will
be created in the openshift-user-workload-monitoring namespace.
$ oc -n openshift-user-workload-monitoring get pod
NAME READY STATUS RESTARTS AGE
prometheus-operator-58768d7cc-28xb5 2/2 Running 0 5h10m
prometheus-user-workload-0 6/6 Running 0 5h10m
prometheus-user-workload-1 6/6 Running 0 5h10m
thanos-ruler-user-workload-0 3/3 Running 0 5h10m
thanos-ruler-user-workload-1 3/3 Running 0 5h10m
You should now be able to see metrics from any cluster enabling them.
For example, we can create the following cluster with monitoring on the
foo namespace:
kubectl apply -n foo -f - <<EOF
- --
apiVersion: postgresql.k8s.enterprisedb.io/v1
kind: Cluster
metadata:
name: cluster-with-metrics
spec:
instances: 3
storage:
size: 1Gi
monitoring:
enablePodMonitor: true
EOF
You should now be able to query for the default metrics that will be
installed with this example. In the Observe section of OpenShift (in
Developer perspective), you should see a Metrics submenu where you
can write PromQL queries. Auto-complete is enabled, so you can peek the
cnp_ prefix:

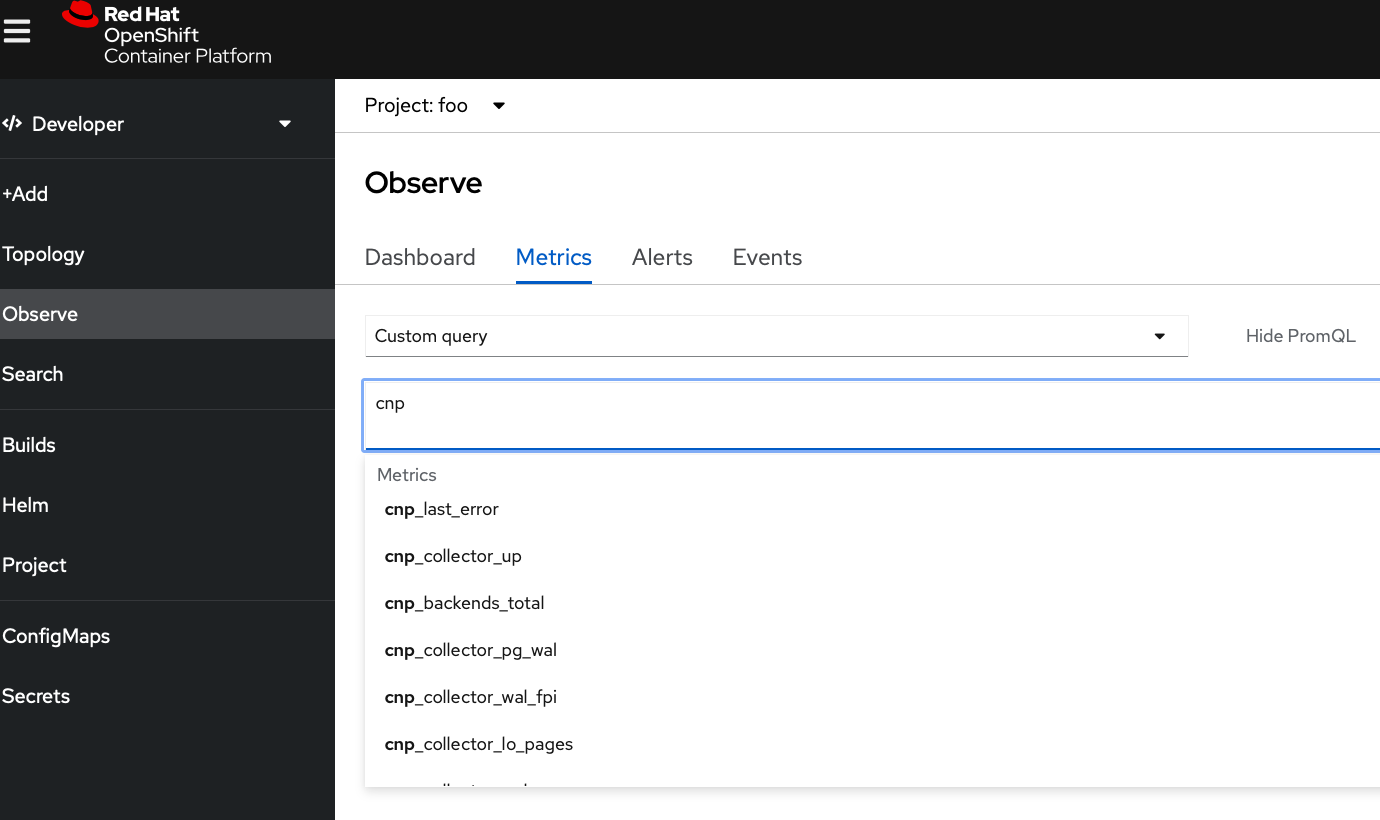

Prometheus queries#
It is easy to define Alerts based on the default metrics as
PrometheusRules . You can find some examples of rules in the file,
which you can download.
apiVersion: monitoring.coreos.com/v1
kind: PrometheusRule
metadata:
name: postgresql-operator-default-alerts
spec:
groups:
- name: cnp-default.rules
rules:
- alert: LongRunningTransaction
annotations:
description: Pod {{ $labels.pod }} is taking more than 5 minutes (300 seconds) for a query.
summary: A query is taking longer than 5 minutes.
expr: |-
cnp_backends_max_tx_duration_seconds > 300
for: 1m
labels:
severity: warning
- alert: BackendsWaiting
annotations:
description: Pod {{ $labels.pod }} has been waiting for longer than 5 minutes
summary: If a backend is waiting for longer than 5 minutes
expr: |-
cnp_backends_waiting_total > 300
for: 1m
labels:
severity: warning
- alert: PGDatabaseXidAge
annotations:
description: Over 300,000,000 transactions from frozen xid on pod {{ $labels.pod }}
summary: Number of transactions from the frozen XID to the current one
expr: |-
cnp_pg_database_xid_age > 300000000
for: 1m
labels:
severity: warning
- alert: PGReplication
annotations:
description: Standby is lagging behind by over 300 seconds (5 minutes)
summary: The standby is lagging behind the primary
expr: |-
cnp_pg_replication_lag > 300
for: 1m
labels:
severity: warning
- alert: LastFailedArchiveTime
annotations:
description: Archiving failed for {{ $labels.pod }}
summary: Checks the last time archiving failed. Will be < 0 when it has not failed.
expr: |-
(cnp_pg_stat_archiver_last_failed_time - cnp_pg_stat_archiver_last_archived_time) > 1
for: 1m
labels:
severity: warning
- alert: DatabaseDeadlockConflicts
annotations:
description: There are over 10 deadlock conflicts in {{ $labels.pod }}
summary: Checks the number of database conflicts
expr: |-
cnp_pg_stat_database_deadlocks > 10
for: 1m
labels:
severity: warning
- alert: ReplicaFailingReplication
annotations:
description: Replica {{ $labels.pod }} is failing to replicate
summary: Checks if the replica is failing to replicate
expr: |-
cnp_pg_replication_in_recovery > cnp_pg_replication_is_wal_receiver_up
for: 1m
labels:
severity: warning
Before applying the rules, again, some OpenShift setup may be necessary.
The monitoring-rules-edit or at least monitoring-rules-view
roles should be assigned for the user wishing to apply and monitor the
rules.
This involves creating a RoleBinding with that permission, for a namespace. Again, refer to the relevant OpenShift document page
for further detail. Specifically, the Granting user permissions by using the web console section should be of interest.
Note that the RoleBinding for monitoring-rules-edit applies to a
namespace, so make sure you get the right one/ones.
Suppose that the cnp-prometheusrule.yaml file that you have
previouly downloaded now contains your alerts. You can install those
rules as follows:
oc apply -n foo -f cnp-prometheusrule.yaml
Now you should be able to see Alerts, if there are any. Note that initially there might be no alerts.

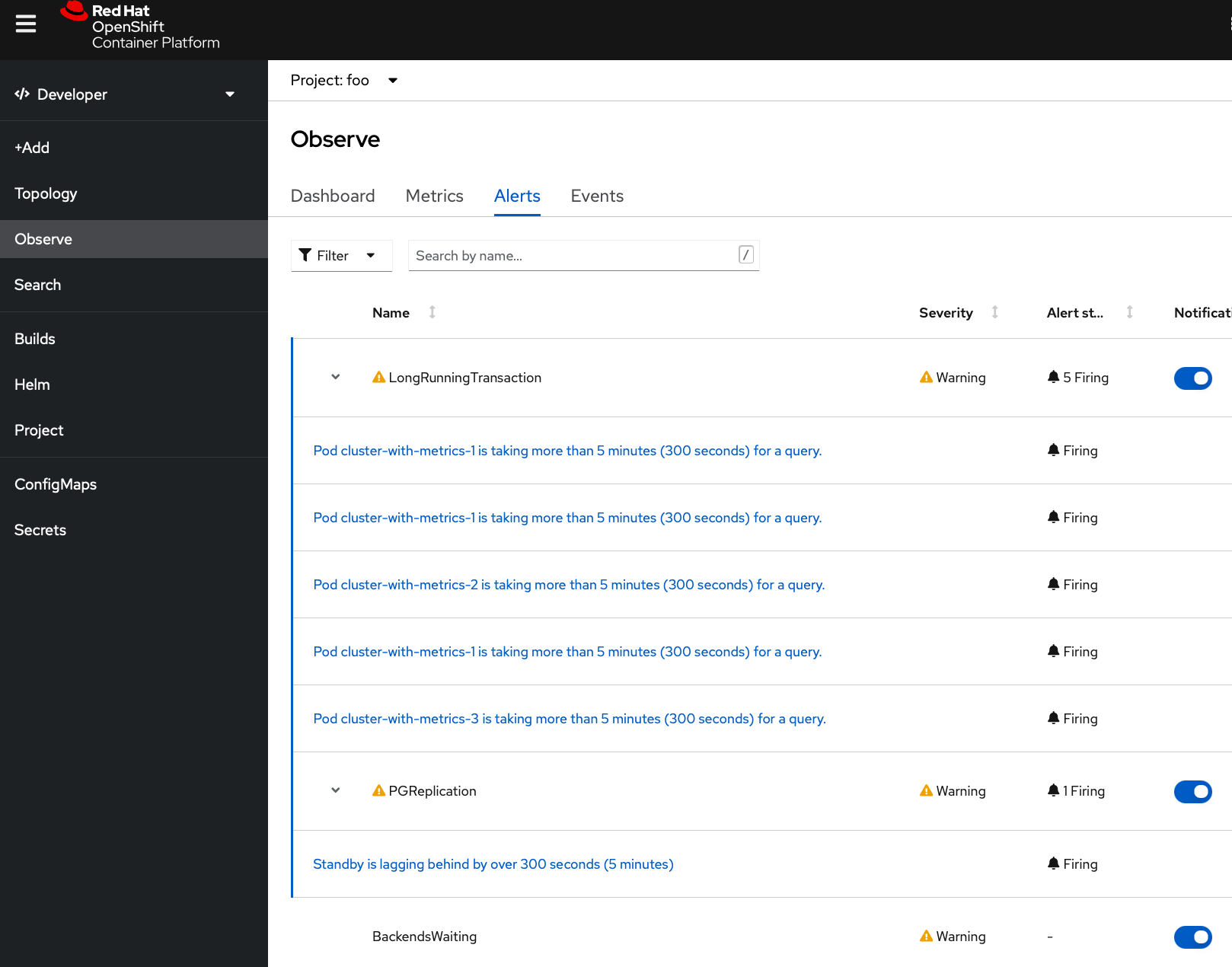

Prometheus alerts#
Alert routing and notifications are beyond the scope of this guide.
