Failover Manager with EDB Pgpool-II#

Pgpool-II is a popular connection pooler that can provide many capabilities, like read-only traffic load balancing, connection pooling, and running as a clustered proxy. With Failover Manager to manage availability and reconfiguring EDB Pgpool-II to proxy to the correct primary, the setup can deliver high availability in an on-premises setup as well as in a cloud setup.

Failover Manager with EDB Pgpool-II on premises#

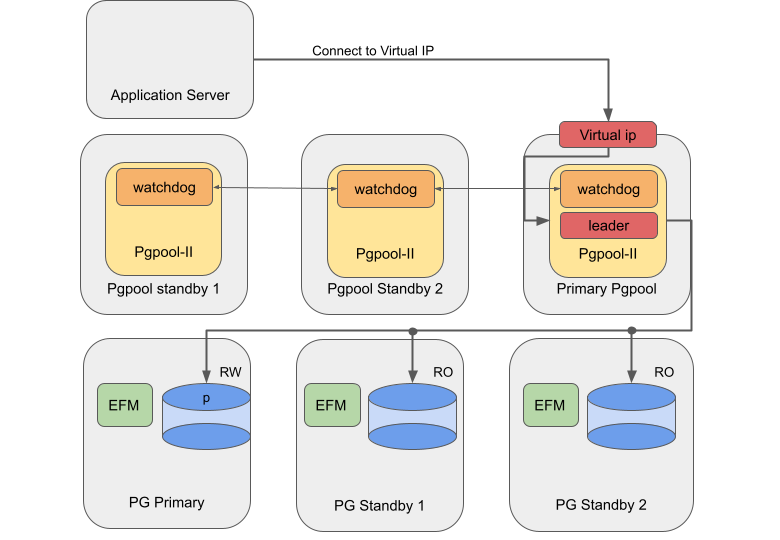

For an on-premises setup, you can use a VIP to route the traffic to an available EDB Pgpool-II instance. In this setup, the automatic failover of EDB Pgpool-II is disabled, and Failover Manager is configured to manage EDB Pgpool-II.

Failover Manager with Pgpool on-premises#

Failover Manager with EDB Pgpool-II in the cloud#

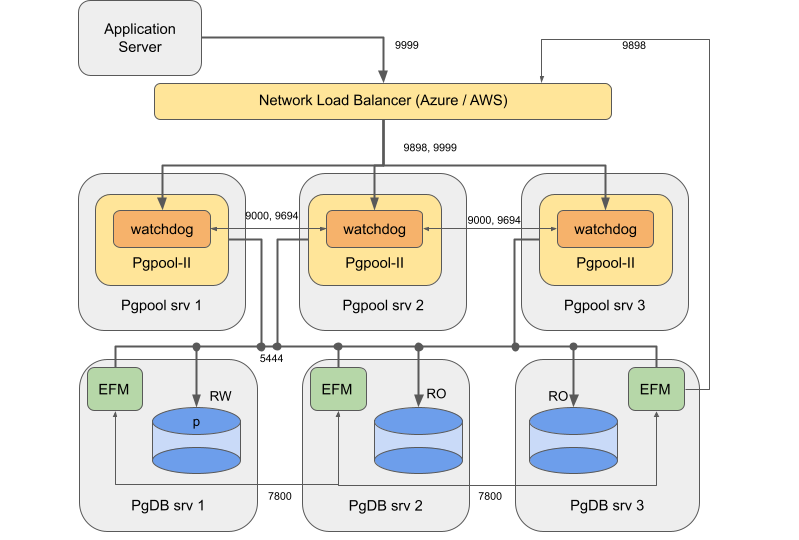

For environments with network load balancers (e.g., cloud environments), you can use a network load balancer (NLB) to balance the traffic over all available EDB Pgpool-II instances without requiring a VIP.

Using Failover Manager with EDB Pgpool-II#

Installing#

Install and configure Advanced Server database, Failover Manager, and EDB Pgpool-II as follows:

Systems	Components
PgDB server 1, server2, and server 3	Primary / standby node running Advanced Server and Failover Manager
EDB Pgpool-II	Pgpool node running EDB Pgpool-II 4.2 in a watchdog configuration. Register these three nodes as targets in the target group. Three is the minimum and is sufficient for most cases.

EDB does not support this architecture with EDB Pgpool-II and Failover Manager/PostgreSQL running on the same machines for the following reasons:

A restriction with cloud network load balancers doesn’t route traffic properly when source and destination reside on the same machines.
In mixed architecture, traffic between Pgpool and Postgres can become unbalanced.
Pgpool and PostgreSQL might compete for resources.

Configuring Failover Manager#

Failover Manager can remove failed database nodes from EDB Pgpool-II load balancing. It can also reattach nodes to EDB Pgpool-II when returned to the Failover Manager cluster. To configure Failover Manager for high availability using EDB Pgpool-II, you must set the following properties in the cluster properties file:

pgpool.enable = true

pcp.user = User invoking PCP commands

pcp.host = Virtual IP of EDB Pgpool-II or IP of NLB

pcp.port = 9898

pcp.pass.file = Absolute path of PCPPASSFILE

pgpool.bin = Absolute path of pgpool bin directory

Configuring EDB Pgpool-II#

You can configure some important parameters in the pgpool.conf file to integrate EDB Pgpool-II with Failover Manager.

Backend node setting#

There are three PostgreSQL backend nodes: one primary and two standby nodes. Configure using backend_* configuration parameters in pgpool.conf , and use the equal backend weights for all nodes. This makes the read queries distributed equally among all nodes.

backend_hostname0 = server1_IP

backend_port0 = 5444

backend_weight0 = 1

backend_flag0 = ALLOW_TO_FAILOVER

backend_hostname1 = server2_IP

backend_port1 = 5444

backend_weight1 = 1

backend_flag1 = ALLOW_TO_FAILOVER

backend_hostname2 = server3_IP

backend_port2 = 5444

backend_weight2 = 1

backend_flag2 = ALLOW_TO_FAILOVER

Enabling load balancing and streaming replication mode#

Set the following configuration parameter in the pgpool.conf file to enable load balancing and streaming replication mode:

For EDB Pgpool-II version 4.2:

backend_clustering_mode = streaming_replication

load_balance_mode = on

For EDB Pgpool-II versions prior to 4.2:

master_slave_mode = on

master_slave_sub_mode = stream

load_balance_mode = on

Disabling health checking and failover#

Health checking and failover are handled by Failover Manager, so disable them on the EDB Pgpool-II side. To disable the health check and failover on EDB Pgpool-II side, assign the following values:

health_check_period = 0

failover_on_backend_error = off

failover_if_affected_tuples_mismatch = off

failover_command =

failback_command =

Ensure the following while setting up the values in the pgpool.conf file:

Keep the value of wd_priority in pgpool.conf different on each node. The node with the highest value gets the highest priority.
The properties backend_hostname0 , backend_hostname1 , backend_hostname2 , and so on are shared properties (in Failover Manager terms) and must hold the same value in the pgpool.conf file on all the EDB Pgpool-II nodes.
Update the correct interface value in if_ * and arping cmd props in the pgpool.conf file.
Add the properties heartbeat_destination0 , heartbeat_destination1 , heartbeat_destination2 , and so on as per the number of nodes in the pgpool.conf file on every node. Here set heartbeat_destination0 to the IP address or hostname of the local node.

Setting up PCP#

The script uses the PCP interface, so you need to set up the PCP and .PCPPASS file to allow PCP connections without a password prompt.

To set up PCP, see: Configuring pcp.conf .

To set up PCPPASS, see: PCP commands .

The load balancing is turned on to ensure read scalability by distributing read traffic across the standby nodes.

The health checking and error-triggered backend failover are turned off, as Failover Manager is responsible for performing health checks and triggering failover. We do not recommend using EDB Pgpool-II to perform health checking in this case, to avoid a conflict with Failover Manager or prematurely performing failover.

Finally, search_primary_node_timeout is set to a low value to ensure prompt recovery of EDB Pgpool-II services upon a Failover Manager-triggered failover.

Using virtual IP addresses#

Both EDB Pgpool-II and Failover Manager provide the functionality to employ a virtual IP for seamless failover. While both provide this capability, the EDB Pgpool-II leader is the process that receives the application connections through the virtual IP. As in this design, such virtual IP management is performed by the EDB Pgpool-II watchdog system. Failover Manager VIP doesn’t help in this design, so disable it.

In a failure situation of the active instance of EDB Pgpool-II (the primary EDB Pgpool-II server in our sample architecture), the next available standby EDB Pgpool-II instance (according to watchdog priority) is activated and takes charge as the leader EDB Pgpool-II instance.

Configuring the network load balancer#

For Failover Manager / EDB Pgpool-II integration using the network load balancer in AWS or Azure, you need to perform some additional steps.

Add the following rules to the security groups to be used by the EDB Pgpool-II instances:

Rules for the security group to be used by the EDB Pgpool-II instances (SG Pgpool).

Type | Protocol | Port range | Source | Description ————|—————|—————-|—————-|——————- Custom TCP | TCP | 9000 | Entire Subnet | Watchdog Custom TCP | TCP | 9694 | Entire Subnet | Heartbeat Custom TCP | TCP | 9898 | Entire Subnet | pcp Custom TCP | TCP | 9999 | Entire Subnet | Pgpool

In addition to these rules, add the rules for SSH and Ping as per your requirement.

Rules for the security group to be used by the database instances (SG DB):

Type | Protocol | Port range | Source | Description ————|—————|—————-|—————-|——————- Custom TCP | TCP | 7800 | Entire Subnet | Failover Manager Custom TCP | TCP | 5444 | Entire Subnet |Postgres

Setting these rules ensures that the ports required to run the database, Failover Manager, and EDB Pgpool-II are open for communication between the nodes and the load balancer for traffic routing and health monitoring.

In addition to these rules, add the rules for SSH and Ping as per your requirement.

Configuring NLB in Azure#

If using AWS, see Configuring NLB in AWS .

After configuring the security group rules described in Configuring the network load balancer , follow the Azure documentation to:

Create a backend pool consisting of all the virtual machines running EDB Pgpool-II instances. Use the private IPs of the virtual machines to create the backend pool.
Add a health probe to check if the EDB Pgpool-II instance is available on the virtual machines. Set the protocol to TCP and the port to 9999 .
Add two load balancing rules, one each for port 9898 and port 9999 . These rules ensure that the network traffic coming toward that port is distributed evenly among all the virtual machines present in the backend pool. Set the type to Public load balancer or Internal load balancer.

After completing these configurations, you can connect to the database on the IP address of the network load balancer on port 9999. If a failure occurs on the primary database server, Failover Manager promotes a new primary and then reconfigures EDB Pgpool-II to redistribute traffic. If any of the EDB Pgpool-II processes is not available to accept traffic, the network load balancer redistributes all the traffic to the remaining two EDB Pgpool-II processes. Make sure that the listen_backlog_multiplier parameter is tuned to compensate for the higher number of connections in case of failover.

Configuring NLB in AWS#

The following assumptions have been taken for the sample configuration:

All the EC2 instances and the load balancer are deployed in the same subnet. If required, you can add the database nodes to another subnet, but that requires a more complex configuration and might have a performance impact.
There is a security group for EDB Pgpool-II and a security group for the database instances.

After configuring the security group rules described in Configuring the network load balancer , follow the AWS documentation to:

Create two target groups with the following details:

Name | Type | Protocol | Port | VPC —————|—————-|—————-|—————-|—————————————————– pcp | Instances | TCP | 9898 | Select the VPC to which the instances are connected. pgpool | Instances | TCP | 9999 | Select the VPC to which the instances are connected. Leave the rest of the settings (Health check TCP and Advanced health check settings) as default.

Create a load balancer with the following details:

Type | VPC | Listener | ———————————————————————–|———————————————–|————————————————————————————————————————————————————————-| Public or Internal . EDB recommends using an internal load balancer.| Choose a VPC and map it to the desired zones. | Create a listener with TCP set to 9898 , and forward it to the target group pcp. Create another listener with TCP set to 9999 , and forward it to the target group pgpool.|

After completing the configurations, you can connect to the database on the IP address of the network load balancer on port 9999. If a failure occurs on the primary database server, Failover Manager promotes a new primary and then reconfigures EDB Pgpool-II to redistribute traffic. If any of the EDB Pgpool-II processes is not available to accept traffic, the network load balancer redistributes all the traffic to the remaining two EDB Pgpool-II processes. Make sure that listen_backlog_multiplier is tuned to compensate for the higher number of connections in case of failover.
